Truck Scale Weighbridge
>
80T Weight Scale For Trucks

80T Weight Scale For Trucks

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: HR-TS
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
HR-TS
Material:
Carbon Steel
Load Cell:
Keli /Zemic
Display:
Led/lcd
Cable:
30m Signal Cable
Certificate:
CE ISO9001
Warranty:
1 Year
Color:
Grey
Package:
Nude
Function:
Weight Function
Voltage:
AC
High Light:

High Light

High Light:

80T Weight Scale For Trucks

,

12MM Thickness Weight Scale For Trucks

,

80T commercial truck scales

Trading Information
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
nude and wooden case
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
50sets per month
Product Description

3*16M 3 Section 80 Ton 12Mm Platform Thickness Carnon Steel Industrial Weighbridge Truck Scale Platform Scale​



Specification:

1 )  8mm thick checker plate or 10mm thick smooth plate
2 )  22cm high U beam 6 pcs, completed sealed between the U beams, 2 pcs 22cm high C channel
3 )  with OIML approved double shear beam load cells

4)   with optional indicators : A9 OR A9P



Truck Scale Technical Specification
Width 3m
Length 6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 10~150TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.



Feature:


The outside frame use professional sections;
The inside use double fabric reinforcement;
Use latch plate type connecting way;
Use high capacity electronic weighing load cell;
High anticorrosion strength, suitable for damp land near the sea and the area that corroded by chemicals long Service of life;
Lightning stroke resistant, avoid the possible damage caused by lighting stroke;
Long term stability, can be used more than 20 years;



The Superiority of our truck scale :



* Modularization, standardization, serialization platform, multi-unit combination
* Automatic reset force transmission system
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically



Long lasting-unique u type steel bridge girder structure
1. high strength
2. even by force
3. strong lateral resistance.



Strong corrosion resistance-steel plate subjected to shot blasting
1. wear resistance
2. withstand voltage
3. acid resistance
4. alkali resistance



Accessories parts:

Other optionals:
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable





Product details:

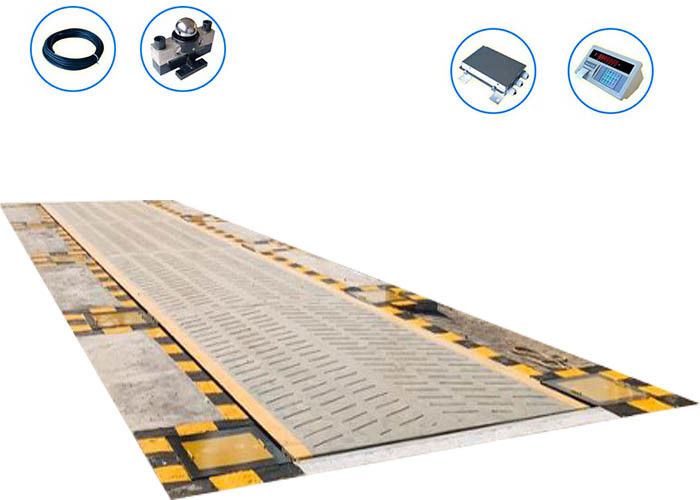

80T Weight Scale For Trucks 0



80T Weight Scale For Trucks 1

Pit free structure Shallow foundation pit structure
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level



Company Profile:

Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.







FAQ:



Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.



Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.



Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.



Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.



Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.

With OIML, CE, NTEP CERTIFICATIONS
