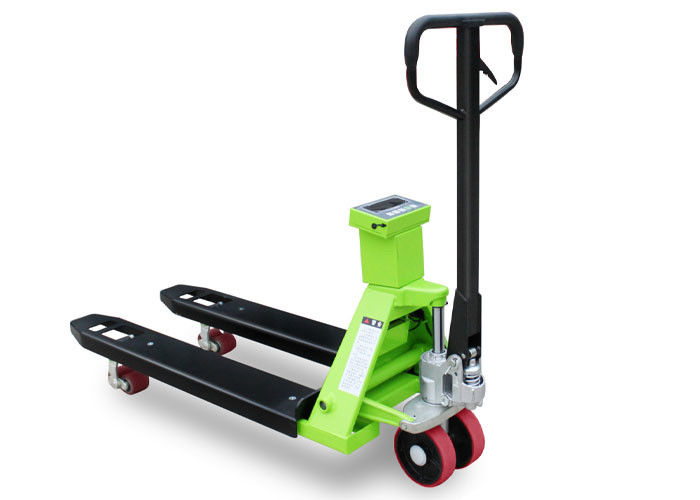

RS232 Pallet Jack With Built In Scale

Electronic Weight Scales
Price negotiable
Payment Method:
L/C, T/T, Western Union, MoneyGram
1150 Mm
2 Ton
560/690 Mm
Carbon Steel
LCD(LED )Display
Carton Box/wooden Case
Signal Cable:
40 CM
1 Year
1 Set
High Light:

RS232 Pallet Jack With Built In Scale


rechargeable Pallet Jack With Built In Scale


RS232 heavy duty pallet jack


3000 kg 3 ton Electronic Forklift Weighing Scale Pallet Jack Scale Hand Pallet Truck with Weigh Scale


Pallet scale indicator:

 Normally we use yaohua XK3190-A12E, also we have other option for you to choose.

They are XK3190-A27E and XK3190-A23P.


XK3190-A12E,it is with built-in rechargeable battery and LED display.There are 5 buttons,the first one is hash key ,when opening the indicator,press this button then you can enter the calibration state that you can set the division value , decimal point setting, full capacity setting, zero point calibration and full scale calibration.


Another indicator is A27E,it is with 2-inch special bright LED large display screen, 10 times automatic amplification function, high-precision digital to analog conversion technology, equipped with RS-232C communication port and large screen communication port.


XK3190-A23P,It is a three window LCD indicator with built-in micro printer. It is suitable for static weighing system within 4 load cells like electronic platform floor scale and beam scale, .It has standard pricing function, with cumulative function, which can display and print details and cumulative documents.


It is applicable to industrial and mining enterprises and it’s the best choice for weighing moving cargo in short distance.

Model   HL20(2 ton) HL (3ton)
Rated load Kg 2000 3000
Fork lowering height mm 80 80
Fork lifting height mm 195 195
Fork Size mm 50*160*1150 50*160*1150
Vehicle size mm 550/680*1220*1550 550/680*1220*1550
Steering wheel mm Φ180*50 Φ180*50
Bearing wheel mm Φ80*70 Φ80*70
Wheel material mm PU wheel/ Nylon wheel PU wheel/ Nylon wheel


Optional material for plate,carbon steel and stainless steel is optional for your selection.
Carbon steel:as the rust and corrosion,just using range to warehouse,factory,normal industrial,etc.
Stainless steel:using range to factory plane,chemical industrial,etc.
Integrated forming,precision casting into an oil cylinder,internal use sealing ring of oil pump,adapting to harsh environment.

Handle covered by high-level rubber,comfortable and easy to use,three position adjustable,accord with the principle of ergonomic.

With Keli*1 or Zemic*2 SQB load cells optional.

*1 & *2 : Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.

RS232 Pallet Jack With Built In Scale

Company Profile:

Changzhou Winlit Weighing Equipment Co.,Ltdis located in Changzhou,Jiangsu Province,which is one of the most developed areas in China. As one of the leading manufacturers in Weighing Equipment field in China. Winlit  has the big Weighing indicators have attained CE certification. Winlit promise that we make the quality excellence,be sincere to customer,operate the business under pinnerd,innovate actively,import continuously,co-operate and share the profit make the management sustainable,be responsible to sociality, make customer satisfied,and protect the environment for a clean earth.

RS232 Pallet Jack With Built In Scale
RS232 Pallet Jack With Built In ScaleRS232 Pallet Jack With Built In Scale
1. Reply in 24 hours.

2. Customized cylinder color, cap type, valve model no. And stamping is accepted.

3. Every cylinder will be tested before the delivery.

4. Delivery on time and excellent after-sales service.

5. High quality, reliable price.


Q:Could you offer more information about the products and quote a best price?
A:Yes,certainly,we will send our product catalog and company introduction for your reference. You can choose one or more model,I will advise suitable one for you,also with best price details.

Q:Are you manufacturer of trading company?
A:We are the manufacturer in this area more than 15 years,our company exports to many country.

Q:How long is your delivery time?What's your payment terms?
A:Generally it is 5-10 days if the goods are in stock and it's 15-20 days if the goods are not in stock.It is according to
quantity.Payment terms is TT ,LC,cash can be negotiation with us.

Q:Your price is a little bit higher than my target,can you offer a better price?
A:Yes,price can be negotiation,we try our best to meet your target,let's find a win-win solution,we always keep long term cooperation relations with customers.
