Pallet Jack With Weight Scale
>

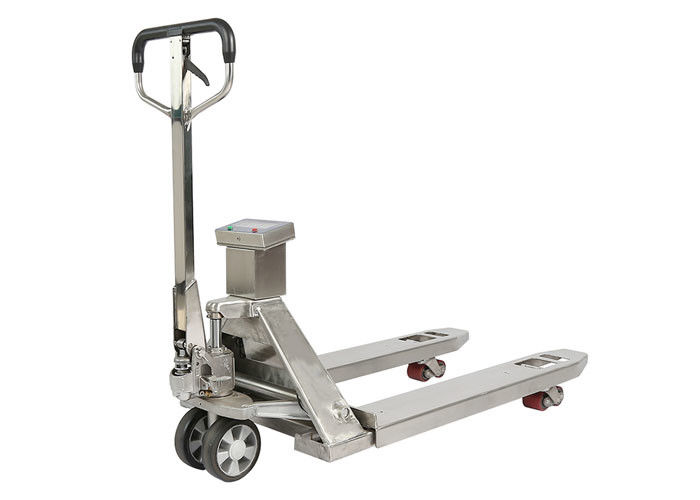

Removable Hand Pallet Jack With Built In Scale Die Casting

Removable Hand Pallet Jack With Built In Scale Die Casting

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: CH-P
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
CH-P
Key Word:
Forklift Scale
Signal Cable:
40 Cm
Material:
Carbon Steel Or Stainless Steel
Display:
LCD(LED )Display
Package:
Carton Box/wooden Case
Interface:
RS 232
Warranty:
12 Months
Load Cell:
Keli /Zemic
High Light:

High Light

High Light:

Hand Pallet Jack With Built In Scale

,

Removable Pallet Jack With Built In Scale

,

Hand pallet jacks with scales

Trading Information
Minimum Order Quantity:
1 set
Price:
Price negotiable
Packaging Details:
carton box or wooden case
Delivery Time:
5-10 work days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100 sets per day
Product Description

Removable Diecasting Hand Pallet Trucks Price Balance Weight Type Forklift Truck scale



The handle for the pallet,it has three positions ,there are neutral gear,shift gear and drop gear.

It is very convenient to use ,when you want to lift up th cargo ,just press the gear and press the handle for several times,if you want to let the forks down ,you need to turn up the gear.


It is applicable to industrial and mining enterprises and it’s the best choice for weighing moving cargo in short distance.


Model   HL20(2 ton) HL (3ton)
Rated load Kg 2000 3000
Fork lowering height mm 80 80
Fork lifting height mm 195 195
Fork Size mm 50*160*1150 50*160*1150
Vehicle size mm 550/680*1220*1550 550/680*1220*1550
Steering wheel mm Φ180*50 Φ180*50
Bearing wheel mm Φ80*70 Φ80*70
Wheel material mm PU wheel/ Nylon wheel PU wheel/ Nylon wheel



Optional material for plate,carbon steel and stainless steel is optional for your selection.
Carbon steel:as the rust and corrosion,just using range to warehouse,factory,normal industrial,etc.
Stainless steel:using range to factory plane,chemical industrial,etc.

Integrated forming,precision casting into an oil cylinder,internal use sealing ring of oil pump,adapting to harsh environment.


Handle covered by high-level rubber,comfortable and easy to use,three position adjustable,accord with the principle of ergonomic.
With Keli*1 or Zemic*2 SQB load cells optional.

*1 & *2 : Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.


Removable Hand Pallet Jack With Built In Scale Die Casting 0
Company Profile:
Changzhou Winlit  Weighing Equipment Co.,Ltdis located in Changzhou,Jiangsu Province,which is one of the most developed areas in China. As one of the leading manufacturers in Weighing Equipment field in China. Winlit  has the big Weighing indicators have attained CE certification. Winlit  promise that we make the quality excellence,be sincere to customer,operate the business under pinnerd,innovate actively,import continuously,co-operate and share the profit make the management sustainable,be responsible to sociality, make customer satisfied,and protect the environment for a clean earth.

Removable Hand Pallet Jack With Built In Scale Die Casting 1
Removable Hand Pallet Jack With Built In Scale Die Casting 2Removable Hand Pallet Jack With Built In Scale Die Casting 3
1. Reply in 24 hours.

2. Customized cylinder color, cap type, valve model no. And stamping is accepted.

3. Every cylinder will be tested before the delivery.

4. Delivery on time and excellent after-sales service.

5. High quality, reliable price.


FAQ:
Q:Could you offer more information about the products and quote a best price?
A:Yes,certainly,we will send our product catalog and company introduction for your reference. You can choose one or more model,I will advise suitable one for you,also with best price details.
Q:Are you manufacturer of trading company?
A:We are the manufacturer in this area more than 15 years,our company exports to many country.
Q:How long is your delivery time?What's your payment terms?
A:Generally it is 5-10 days if the goods are in stock and it's 15-20 days if the goods are not in stock.It is according to
quantity.Payment terms is TT ,LC,cash can be negotiation with us.
Q:Your price is a little bit higher than my target,can you offer a better price?
A:Yes,price can be negotiation,we try our best to meet your target,let's find a win-win solution,we always keep long term cooperation relations with customers.
