Truck Scale Weighbridge
>
Electronic Load Cell Weighbridge Truck Weight Scale 80t 100t

Electronic Load Cell Weighbridge Truck Weight Scale 80t 100t

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE, ISO
Model Number: HR-TS001
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE, ISO
Model Number:
HR-TS001
Max Capacity:
80-100TON
Ramp Types:
Carbon Steel
Surface:
Checker /smooth
Beam No.:
6pcs U Beam
Package:
20GP/40GP Container, Wooden Case
Suitable Plug:
Customized
Indicator:
YAOHUA / KELI
Load Cell:
20T/30T/40T/50T
High Light:

High Light

High Light:

Electronic Load Cell Weighbridge

,

80t Load Cell Weighbridge

,

6pcs U Beam Truck Weight Scale

Trading Information
Minimum Order Quantity:
1
Price:
Price negotiable
Packaging Details:
Wooden case, container
Delivery Time:
10-20 days
Payment Terms:
T/T
Supply Ability:
10 sets per week
Product Description

Electronic Load Cell 80t 100t Weighbridge Truck Weight Scale Manufacturer



Whether you’re hauling a heavy load of raw materials or finished goods, it’s crucial to capture accurate weighments. Today, manufacturing companies are integrating and automating their truck scales to increase efficiency in the scale yard, ensure measurement accuracy, and drive profitability in their operations. With integration services from HENER, your business can take full advantage of best-in-class weighing technology with a custom-designed, comprehensive truck scale system.



Our truck scales are available in a wide range of standard and customized configurations to suit your application needs. We offer truck scales in standard sizes between 3m to 3.8m wide that suit most customers. Where standard doesn't suit, we can produce almost any length combination thanks to our modular design, with either steel or concrete driving surfaces, and can be either above ground or pit mounted.



LP7810 2 year warranty truck scale

Product Name: truck scale

one set weighing bridge indclude: truck scale

·QS load cell

·Big second 3" display(option)

·Junction box

·Install manual & user manual

·Soft ware

truck scale

Distinct U-type beam steel bridge truck scale.
Feature: Modularized truck scale
standardized,muitiple truck scale





How does a weighbridge work?



Five main components must work together for a truck scale to function properly.

1. Foundation: permanent installations use a concrete foundation.

2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.

3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.

4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.

5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.



Accessories parts (including optional parts):


* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable



Detailed information:



Truck Scale Technical Specification
Width 3m, 3.2m
Length 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 120 TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE

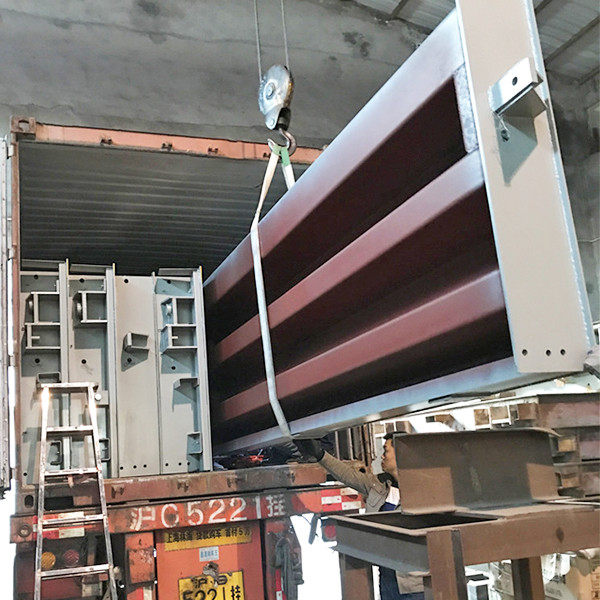

Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.



Type:
Standard Steel deck weighing bridge
Portable Steel deck weighing bridge
Concrete weighing bridge
Feature:
Distinct U-type beam or H Beam steel bridge construction
Modularized, standardized, muitiple;
The height of platform is: 6m~24m
The width of platform is: 3m 3.2m 3.4m
Weighing capacity: 30t 50t 6Ot 80t 100t 120t 150t 200t
Chequered plate steel or Flat plate steel top
No need turn around the scales upside and down
OEM or Customs design is acceptable.
Accuracy Class:OIML III




Checker Plate:

Electronic Load Cell Weighbridge Truck Weight Scale 80t 100t 0

FAQ:



1. What is the MOQ?
If we dont have it in stock, the MOQ is1 pcs Ifwe have it instock, we can ship you even 1pc as sample.
2. What is lead time?
If we have it in stock, we canship it to you within about 3-5
working days. If we dont have itin stock, the lead time will be20~45 days.
3. What is the payment terms?
T/T,/ western Union, L/C, Escrowalibaba is acceptable.
Escrow is same like paypal, afteryou place the order and makeI the payment on alibaba.com,
alibaba company will notify us tomake the shipment, your moneywont be released until you getthe goods.
If we dont make the shipment,you stilll can take back yourmoney.
4. What is tne express delivery?
DHL,. Fedex, TNT ,EMS, UPS etc.We will choose the safe and
cheapest way for you to reduceyour cost.
Economic shipping way: by sea, byair transport
If you place mass order with us, theshipping way of by sea or by airtransport will be ideal choice .
5. What Is the qualty guarantee?
Quality guarantee: 12 months.If tne product has quality problemwithin 12 montns, please return it tous, we will repair it; if we cantrepair it successfully, we will giveyou a new one; but the man --madedamage, improper operation andforce majeure will be excepted.And you will pay the shipping costof returning to us, we will pay theshipping cost to you.

6.Is there any after-sale service?
After you receive our product, ifyou have any questions or needany assistance. we can provideyou the after-sale service bye-mail,skype , trade,
manager, telephone, whatsapp orwechat etc.
