Truck Scale Weighbridge
>
Electronic Truck Scale Weighbridge Weighing Scales 3x18 M 50 60 80 100 Ton

Electronic Truck Scale Weighbridge Weighing Scales 3x18 M 50 60 80 100 Ton

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE, ISO
Model Number: HR-TS-01
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE, ISO
Model Number:
HR-TS-01
Weighing Capacity:
10-200ton
Load Cell:
Keli /zem0c
Size:
Customized
Warranty:
1 Year
Function:
Industrial
Structure:
U -beam Steel Bridge Truck Scale
Indicator:
YAOHUA / KELI
Material:
10mm Carton Steel Truck Scale
Power Supply:
110v/220v
Plate Type:
Smooth /checker
High Light:

High Light

High Light:

50T Electronic Truck Scale Weighbridge

,

3x18M Truck Scale Weighbridge

,

100Ton Electronic Truck Scale

Trading Information
Minimum Order Quantity:
1
Price:
Price negotiable
Packaging Details:
nude and wooden case
Delivery Time:
10-20 days
Payment Terms:
T/T
Supply Ability:
50 sets per month
Product Description

Premium Quality 3x18 m 50 60 80 100 Ton Electronic Truck Scale Weighing Scales Weighbridge





A quality weighbridge will successfully achieve the task of weighing goods, which is essential for many businesses. Today, however, weighbridge owners and operators can also reap the benefits of unmanned systems, state-of-the-art weighbridge software designed for individual needs, remote operation and integration into existing in-house systems. However, to protect any weighing system investment, it is vital that the technology behind the design of the weighbridge is understood.



Designed for the challenges of tough, industrial environments, each of our weighbridges that roll off of our production line in the heart of the country are built to last. Buying from HENER WEIGHING, you’re investing in rugged design, robust weight sensors and the highest quality manufacturing. And the best bit? It’s all supported by an industry-leading warranty and exclusive service options.



Accessories parts (including optional parts):


1. Optional in platform size, Max. Cap.
2. Optional in other brand's load cells, indicator.
3. Optional RS232 interface
4. Optional ramps or rails.
5. Optional big screen.
6. Optional extra printer
7. Optional software
8. Optional computer
9. Optional double shielded cable





The Superiority of our truck scale :


* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically





How does a weighbridge work?



Five main components must work together for a truck scale to function properly.

1. Foundation: permanent installations use a concrete foundation.

2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.

3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.

4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.

5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.



Detailed information:



Truck Scale Technical Specification
Width 3m, 3.2m
Length 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 120 TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.





Type:
Standard Steel deck weighing bridge
Portable Steel deck weighing bridge
Concrete weighing bridge
Feature:
Distinct U-type beam or H Beam steel bridge construction
Modularized, standardized, muitiple;
The height of platform is: 6m~24m
The width of platform is: 3m 3.2m 3.4m
Weighing capacity: 30t 50t 6Ot 80t 100t 120t 150t 200t
Chequered plate steel or Flat plate steel top
No need turn around the scales upside and down
OEM or Customs design is acceptable.
Accuracy Class:OIML III

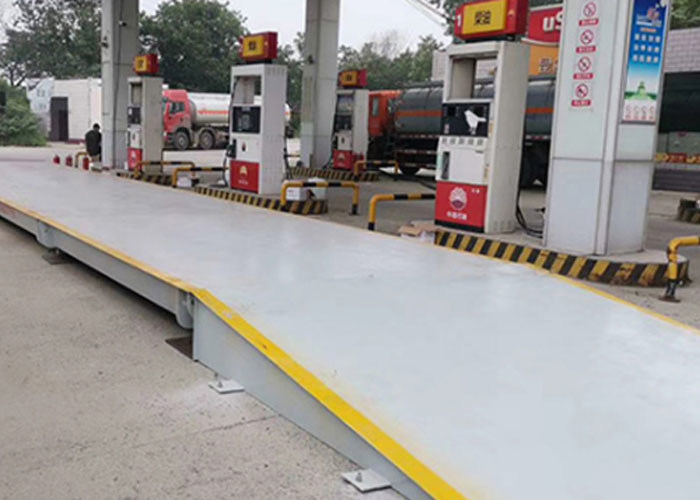

Electronic Truck Scale Weighbridge Weighing Scales 3x18 M 50 60 80 100 Ton 0

FAQ:



1. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don’t have it in stock, the lead time will be 10-30 days normally.
2. What is the payment terms?
T/T, Western Union, Paypal, Escrow alibaba is acceptable.
Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods.
If we don’t make the shipment, you still can take back your money.
3. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport .
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
4. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
5. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
