SCS-100 Digital Weighbridge Truck Scale Manufacturer 3*18m 100t
100t Digital Weighbridge Truck Scale
,3X18m Weighbridge Truck Scale
,Anti Rust Truck Scale Weighbridge
SCS-100 3*18m 100t Digital Weighbridge Truck Scale Manufacturer

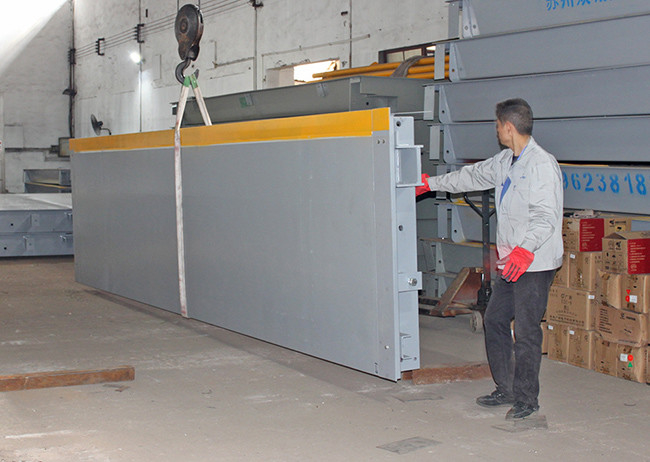

Winlit truck scale :Top access to load cells and junction boxes through an integrated load cell pocket ensures easy installation and maintenance. Load cell pockets are made with heavy-duty steel plates incorporated into the design of the scale, adding extraordinary strength and integrity to a critical area of the weighbridge.
Our truck scales are available in a wide range of standard and customized configurations to suit your application needs. We offer truck scales in standard sizes between 3m to 3.8m wide that suit most customers. Where standard doesn't suit, we can produce almost any length combination thanks to our modular design, with either steel or concrete driving surfaces, and can be either above ground or pit mounted.
The Superiority of our truck scale :
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically
Truck Scale systems provide a solution to weigh trucks, trailers or any other type of wheeled vehicle, quickly and accurately.
the width of the truck scale can be 3 meters ,3.2meters ,3.4meters, but 3 meters is the most normal width.
For the length of truck scale ,we have 6, 8 ,10,16,18 ,20 and so on,you know the truck scale length depends on the length of truck or trailer you want to weigh.
Specifications:
1. Plain plate or chequered plate optional
2. With a top cover on the platform for access to the load cells
3. Composed of 4 or 6 U beams and C channel beams, robust and rigid
4. Middle dissected, with bolts connection
5. Double shear beam load cell or compression load cell selectable
6. Pit/pitless mounted alternatively, and pit mounted more often
7. Easy assembly and installation
8. Width available: 3m, 3.2m, 3.4m
9. Standard length available: 6m, 7m, 8m, 9m, 10m, 12m, 14m, 16m, 18m, 20m, 21m, 24m, customized
10. Max. Capacity available: 30t, 40t, 60t, 80t, 100t, 120t, 150t, 200t,customized
Accessories parts (including optional parts):
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable
Detailed information:
| Truck Scale Technical Specification | |
| Width | 3m, 3.2m |
| Length | 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m |
| Power supply | 110V±10%；220V±10% AC or DC,50 or 60Hz |
| Accurancy class | OIML(III) |
| Capacity range | 120 TON |
| Safe overload | 150% |
| Material | Q235steel |
| Thickness of plate | 8~20mm |
| Structure | 6mm U-shaped beams |
| Painting | Anti rust and anti corrsion |
| Quality system | ISO9001:2020 |
| Certificate | CE |
| Packing details | In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons. |
| Type: | |
| Standard Steel deck weighing bridge | |
| Portable Steel deck weighing bridge | |
| Concrete weighing bridge | |
| Feature: | |
| Distinct U-type beam or H Beam steel bridge construction | |
| Modularized, standardized, muitiple; | |
| The height of platform is: | 6m~24m |
| The width of platform is: | 3m 3.2m 3.4m |
| Weighing capacity: | 30t 50t 6Ot 80t 100t 120t 150t 200t |
| Chequered plate steel or Flat plate steel top | |
| No need turn around the scales upside and down | |
| OEM or Customs design is acceptable. | |
| Accuracy Class:OIML III | |
FAQ:
1. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don’t have it in stock, the lead time will be 10-30 days normally.
2. What is the payment terms?
T/T, Western Union, Paypal, Escrow alibaba is acceptable.
Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods.
If we don’t make the shipment, you still can take back your money.
3. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport .
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
4. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
5. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
