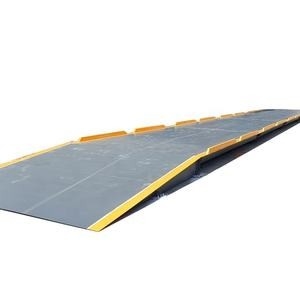

Dynamic 100t Carbon Steel Electronic Truck Scale
|Material||10mm Carton Steel Truck Scale||Warranty||5 Years Truck Scale Body|
|Function||Weigh Trucks||Structure||U -beam|
|Indicator||YAOHUA / KELI|
100t Electronic Truck Scale,
Carbon Steel Electronic Truck Scale,
Dynamic electronic truck scale
Carbon Steel 3X18M Digital Electronic Truck Scale Weighbridge 60t 80t 100t Customized With Digital Indicator Big Display
HENER company has advanced manufacturing machines, automatic welding machines, large shearing machines, bending machines, pre-arching machines, etc. Coupled with advanced technology, our products have high strength, good toughness, compact structure and durability
The scale body is a U-shaped beam structure, and the table top is a flat plate with a thickness of 10mm. The beam and the panel are reasonably spliced into a closed box structure, which effectively improves the strength of the scale body.
The welding of U-shaped beams, using automatic welding machine, welding of 6 main beams at the same time, precise spatial positioning and advanced welding technology, effectively ensure the flatness of the table.
The U-beam is manufactured by a large-scale advanced automatic CNC bending machine, which is a rare high-quality large-scale bending machine in the Chinese weighing apparatus industry.
Our truck scales are available in a wide range of standard and customized configurations to suit your application needs. We offer truck scales in standard sizes between 3m to 3.8m wide that suit most customers. Where standard doesn't suit, we can produce almost any length combination thanks to our modular design, with either steel or concrete driving surfaces, and can be either above ground or pit mounted.
The Superiority of our truck scale :
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically
Truck Scale systems provide a solution to weigh trucks, trailers or any other type of wheeled vehicle, quickly and accurately.
the width of the truck scale can be 3 meters ,3.2meters ,3.4meters, but 3 meters is the most normal width.
For the length of truck scale ,we have 6, 8 ,10,16,18 ,20 and so on,you know the truck scale length depends on the length of truck or trailer you want to weigh.
How does a weighbridge work?
Five main components must work together for a truck scale to function properly.
1. Foundation: permanent installations use a concrete foundation.
2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.
3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.
4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.
5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.
Accessories parts (including optional parts):
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable
|Truck Scale Technical Specification|
|Power supply||110V±10%；220V±10% AC or DC,50 or 60Hz|
|Capacity range||120 TON|
|Thickness of plate||8~20mm|
|Structure||6mm U-shaped beams|
|Painting||Anti rust and anti corrsion|
|Packing details||In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.|
|Standard Steel deck weighing bridge|
|Portable Steel deck weighing bridge|
|Concrete weighing bridge|
|Distinct U-type beam or H Beam steel bridge construction|
|Modularized, standardized, muitiple;|
|The height of platform is:||6m~24m|
|The width of platform is:||3m 3.2m 3.4m|
|Weighing capacity:||30t 50t 6Ot 80t 100t 120t 150t 200t|
|Chequered plate steel or Flat plate steel top|
|No need turn around the scales upside and down|
|OEM or Customs design is acceptable.|
|Accuracy Class:OIML III|
1. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don’t have it in stock, the lead time will be 10-30 days normally.
2. What is the payment terms?
T/T, Western Union, Paypal, Escrow alibaba is acceptable.
Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods.
If we don’t make the shipment, you still can take back your money.
3. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport .
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
4. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
5. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
