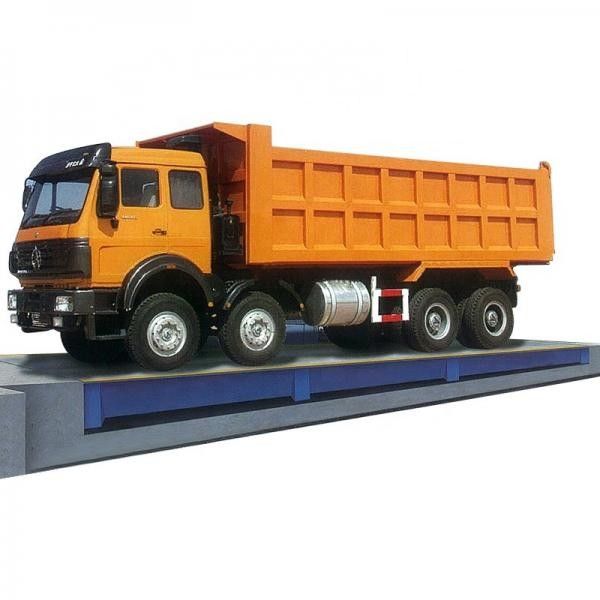

3*12m OEM 40 Ton Truck Scale Weighbridge In Highway

3*12m OEM 40 Ton Truck Scale Weighbridge In Highway

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: CH-T
Detail Information
Place of Origin:
Brand Name:
Model Number:
Carbon Steel
LCD(LED )Display
12 Months
Load Cell:
High Light:

High Light

High Light:

40 Ton Truck Scale Weighbridge


Truck Scale Weighbridge In Highway


oem truck weighing machine

Trading Information
Minimum Order Quantity:
1 set
Price negotiable
Packaging Details:
Delivery Time:
10-20 working days
Payment Terms:
T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability:
5 sets per month
Product Description

3*12m 40 ton Carbon Steel Heavy Duty Weighbridge In Highway Weighing With OEM And Indicator and Plate Optional


Unplanned service calls are a cost that will skyrocket the cost of a scale over time. Analog scales use junction boxes to collect the load cell signal and route that to a terminal. Time and time again junction boxes get filled with water and debris that hinder the overall performance of the scale. Lightning, floods, and other environmental conditions also create opportunities for scales to be down that result in not only repair cost but production downtime.




Truck Scale Technical Specification
Width 3m
Length 6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 10~150TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.



The outside frame use professional sections;
The inside use double fabric reinforcement;
Use latch plate type connecting way;
Use high capacity electronic weighing load cell;
High anticorrosion strength, suitable for damp land near the sea and the area that corroded by chemicals long Service of life;
Lightning stroke resistant, avoid the possible damage caused by lighting stroke;
Long term stability, can be used more than 20 years;


The Superiority of our truck scale :


* Modularization, standardization, serialization platform, multi-unit combination
* Automatic reset force transmission system
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically


Long lasting-unique u type steel bridge girder structure
1. high strength
2. even by force
3. strong lateral resistance.


Strong corrosion resistance-steel plate subjected to shot blasting
1. wear resistance
2. withstand voltage
3. acid resistance
4. alkali resistance


Accessories parts:

Other optionals:
1. Optional in platform size, Max. Cap.
2. Optional in other brand's load cells, indicator.
3. Optional RS232 interface
4. Optional ramps or rails.
5. Optional big screen.
6. Optional extra printer
7. Optional software
8. Optional computer
9. Optional double shielded cable



Product details:

3*12m OEM 40 Ton Truck Scale Weighbridge In Highway 0


3*12m OEM 40 Ton Truck Scale Weighbridge In Highway 1

Pit free structure Shallow foundation pit structure
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level


Company Profile:

Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.





Is it convenient for truck weighbridge scale transportation?
Whole set divides to small sections,easy for shipping and installation.


Do you offer installation in our country?
We have agents in some countries.Please confirm with us if it is available in your country.


Is your price the lowest in the market?
It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.


Is your company factory?
Yes,we are manufacturer.Welcome your visit anytime.


What is your payment way?
Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
