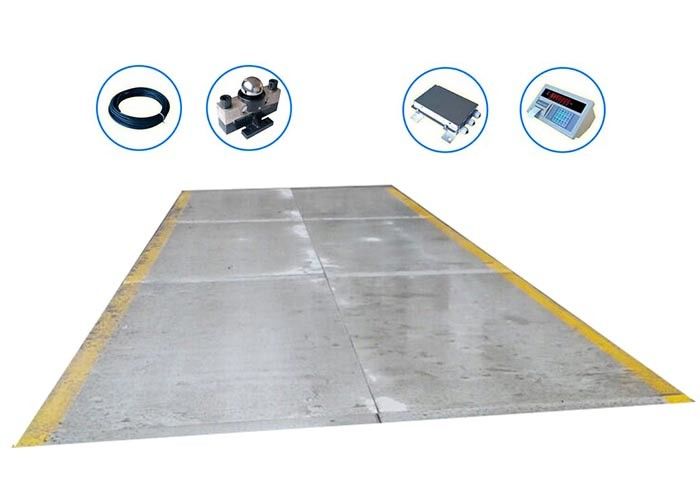

20M 100T Heavy Duty Weighbridge With Load Cell And Indicator
100T Heavy Duty Weighbridge
,20M Heavy Duty Weighbridge
,oem heavy duty truck scales
Hot Sale Factory Produce Carbon Steel 3*18M 100Ton Truck Scale Heavy Duty Weighbridge
Details:
1. We use the bridge design technology on the platform
2. Simple structure,automated processing by machine
3. Uniform force, deformation is small
4. Beautiful appearance
5. Product configuration flexibility, good interchangeability
6. Mass production, product quality and stability
Specification:
| Truck Scale Technical Specification | |
| Width | 3m |
| Length | 6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m |
| Power supply | 110V±10%；220V±10% AC or DC,50 or 60Hz |
| Accurancy class | OIML(III) |
| Capacity range | 10~150TON |
| Safe overload | 150% |
| Material | Q235steel |
| Thickness of plate | 8~20mm |
| Structure | 6mm U-shaped beams |
| Painting | Anti rust and anti corrsion |
| Quality system | ISO9001:2020 |
| Certificate | CE |
| Packing details | In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons. |
Feature:
The outside frame use professional sections;
The inside use double fabric reinforcement;
Use latch plate type connecting way;
Use high capacity electronic weighing load cell;
High anticorrosion strength, suitable for damp land near the sea and the area that corroded by chemicals long Service of life;
Lightning stroke resistant, avoid the possible damage caused by lighting stroke;
Long term stability, can be used more than 20 years;
The Superiority of our truck scale :
* Modularization, standardization, serialization platform, multi-unit combination
* Automatic reset force transmission system
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically

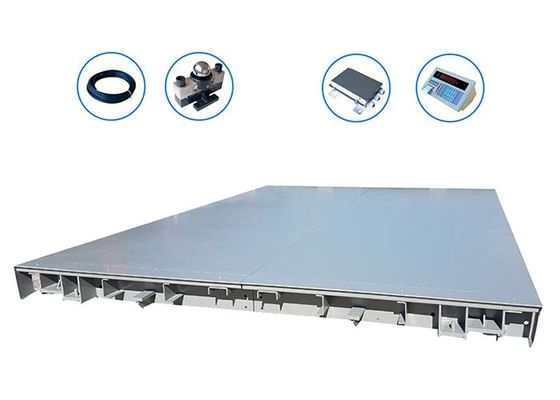

Long lasting-unique u type steel bridge girder structure
1. high strength
2. even by force
3. strong lateral resistance.
Strong corrosion resistance-steel plate subjected to shot blasting
1. wear resistance
2. withstand voltage
3. acid resistance
4. alkali resistance
Accessories parts:
Other optionals:
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable
Product details:
| Pit free structure | Shallow foundation pit structure |
| No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off | Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level |
Company Profile:
Winlitis one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.
FAQ:
Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
With OIML, CE, NTEP CERTIFICATIONS
