Electronic Weighbridge
>
60HZ 80T Electronic Weighbridge Anti Rust Anti Corrsion

60HZ 80T Electronic Weighbridge Anti Rust Anti Corrsion

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: CH-T
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
CH-T
Material:
Carbon Steel
Product Name:
Weight Scale
Display:
LCD(LED )
Min. Capacity:
20 Ton
Certificate:
CE ISO9001
Package:
LCL
Platform Size:
3*20m
Load Cell:
Keli/zemic
High Light:

High Light

High Light:

80T Electronic Weighbridge

,

60HZ Electronic Weighbridge

,

220V weighing bridge machine

Trading Information
Minimum Order Quantity:
1 set
Price:
Price negotiable
Packaging Details:
LCL
Delivery Time:
10-20 working days
Payment Terms:
T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability:
5 sets per month
Product Description

3 X 18m 80ton Carbon Steel Puma Series Movable Weighbridge / Digital Portable Weighbridge Easy Installation



Our standard-duty steel-deck farm truck scales are ideal for today’s producers. Our truck scales are designed to allow producers to install their scale in one day and have it up and weighing. scales and farm truck scales for agriculture producers and suppliers are available in a variety of sizes and configurations to fit most every application.



Specification:



Truck Scale Technical Specification
Width 3m
Length 6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 10~150TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.



Feature:


The outside frame use professional sections;
The inside use double fabric reinforcement;
Use latch plate type connecting way;
Use high capacity electronic weighing load cell;
High anticorrosion strength, suitable for damp land near the sea and the area that corroded by chemicals long Service of life;
Lightning stroke resistant, avoid the possible damage caused by lighting stroke;
Long term stability, can be used more than 20 years;



The Superiority of our truck scale :



* Modularization, standardization, serialization platform, multi-unit combination
* Automatic reset force transmission system
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically



Long lasting-unique u type steel bridge girder structure
1. high strength
2. even by force
3. strong lateral resistance.



Strong corrosion resistance-steel plate subjected to shot blasting
1. wear resistance
2. withstand voltage
3. acid resistance
4. alkali resistance



Accessories parts:

Other optionals:
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable





Product details:

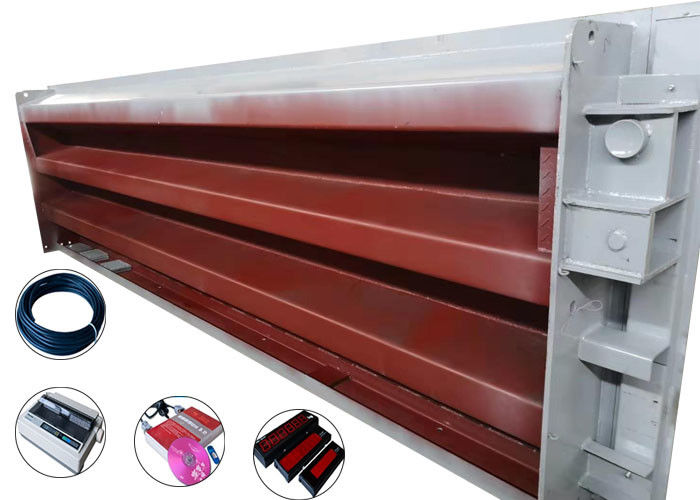

60HZ 80T Electronic Weighbridge Anti Rust Anti Corrsion 0



60HZ 80T Electronic Weighbridge Anti Rust Anti Corrsion 1

Pit free structure Shallow foundation pit structure
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level



Company Profile:

Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.





FAQ:



Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.



Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.



Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.



Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.



Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.

With OIML, CE, NTEP CERTIFICATIONS
