Vehicle Scales Weighing Systems
>
18M 100T Pit Manless Weighbridge System Electronic

18M 100T Pit Manless Weighbridge System Electronic

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: CH-T
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
CH-T
Material:
Carbon Steel
Warranty:
1 Year
Display:
LED LCD
Load Cell:
KELI
Signal Cable:
30M
Package:
Nude
Voltage:
110 V 220 V
Feature:
Unattended Weighing System
Keyword:
Weighbridge
High Light:

High Light

High Light:

Pit manless weighbridge system

,

100T manless weighbridge system

,

Pit manless weighbridge system

Trading Information
Minimum Order Quantity:
1 set
Price:
USD3000-9000 Per Set
Packaging Details:
LCL
Delivery Time:
10 - 20 working days
Payment Terms:
T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability:
5 sets per month
Product Description

Carbon Steel 3x18m 100ton Pit Type Weigh Bridge weighing systems scales Electronic Vehicles Weighbridge



Description :

- Accuracy class: OIML(III) -Weighing scope: 10-200(t)
- Platform combination length: 5-24m -Platform combination width: 3-3.4m
- Interval: ‰ 3000
- Working environment:
- Indicator surrounding: Temperature-10+40℃
- weighing tempeture:-30+65℃ -Relative humidity: 95%



Specification :

1. Tailor made
According to different customer requirements and the actual situation of measurement, it is customized for customers. According to the specific work flow of customers, the unattended truck scale intelligent weighing system is developed according to the actual situation and requirements of customers.
2. Weighing data acquisition module:
The unattended intelligent weighing system adopts open interface protocol design, which can meet all kinds of domestic and foreign truck scale instruments used in customs and ports of domestic factories and mining enterprises.
3. Realize two-way weighing intelligent weighing:
The system meets the requirements of two-way weighing of truck scale, which can realize unattended intelligent weighing.
4.  Long distance Bluetooth automatic recognition subsystem -- anti cheating module of electronic license plate


Feature :


The outside frame use professional sections;
The inside use double fabric reinforcement;
Use latch plate type connecting way;
Use high capacity electronic weighing load cell;
High anticorrosion strength, suitable for damp land near the sea and the area that corroded by chemicals long Service of life;
Lightning stroke resistant, avoid the possible damage caused by lighting stroke;
Long term stability, can be used more than 20 years;



The Superiority of our truck scale :



*  Modularization, standardization, serialization platform, multi-unit combination
*  Automatic reset force transmission system
*  Can be matched with various indicators
*  Digital display gross weight, net weight, tare
*  Dynamic, under load and overload, etc state display
*  Digital filtering, clear tare automatically
*  Subtract tare and clear tare automatically
*  Keyboard set/calibration
*  Vehicle No., tare storage, subitem accumulation, total accumulation
*  Data output/print automatically





Long lasting-unique u type steel bridge girder structure
1.  high strength
2.  even by force
3.  strong lateral resistance.



Strong corrosion resistance-steel plate subjected to shot blasting
1.  wear resistance
2.  withstand voltage
3.  acid resistance
4.  alkali resistance



Product show :

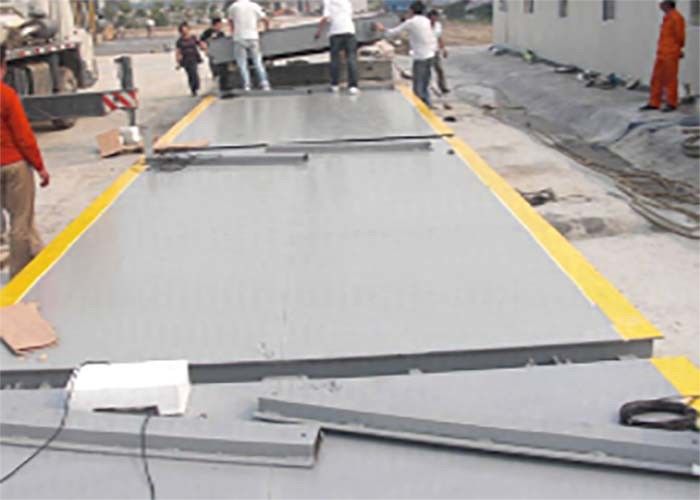

18M 100T Pit Manless Weighbridge System Electronic 0



Accessories parts:

Other optionals:
* 1.  Optional in platform size, Max. Cap.
* 2.  Optional in other brand's load cells, indicator.
* 3.  Optional RS232 interface
* 4.  Optional ramps or rails.
* 5.  Optional big screen.
* 6.  Optional extra printer
* 7.  Optional software
* 8.  Optional computer
* 9.  Optional double shielded cable



Product details :

Structure:                              Weighing Capacity:           Thickness of smooth:        Painting: Anti rust and

U-shape beams                    10T-200T                           plate (8-18mm)                 anti corrosion painting

All the screws and tools        Load cells:                         Chequer plate optional     Accuracy class: OIML(III)

used for installation has        KELI or ZEMIC                  Safe Overload: 150%

been included in the price     LOAD CELLS                    With OIML, CE, NTEP

                                              With indicator:                    CERTIFICATIONS

                                             Yaohua A9P or

                                              customized





                           PITLESS SCALE                                                  SHALLOW FOUNDATION PIT

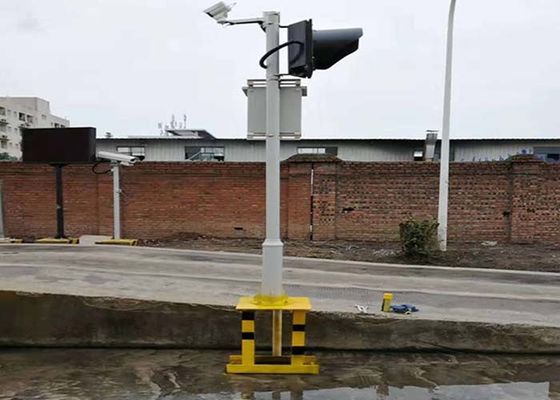

18M 100T Pit Manless Weighbridge System Electronic 1

                      Pit free structure                                                  Shallow foundation pit structure
No foundation pit is installed on the ground                 Shallow foundation pit is installed in the ground,

plane, the surface of the ground pounds                      after the surface of the ground pounds and the

above the ground, need to do both ground level

sides of the slope, easy to get on, off



Product  &  Exhibitions :

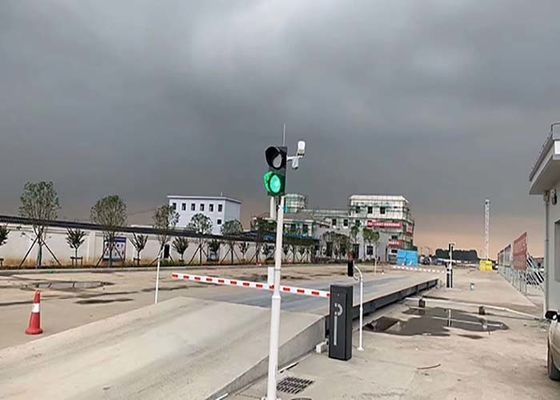

18M 100T Pit Manless Weighbridge System Electronic 2





FAQ :



Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.



Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.



Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.



Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.



Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.

With OIML, CE, NTEP CERTIFICATIONS
