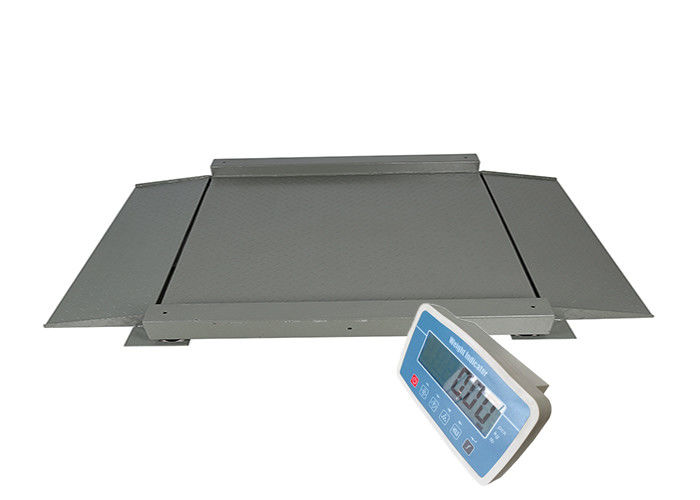

Digital 4 Ton Heavy Duty Weighing Scales , 220V Warehouse Floor Scales

1 set
MOQ
Price negotiable
Price
Digital 4 Ton Heavy Duty Weighing Scales , 220V Warehouse Floor Scales
Features Gallery Product Description Request A Quote
Features
Specifications
Key Word: Floor Scale
Display Play: LED/LCD
Load Cell: KELI
Feature: Stable
Material: Carbon Steel
Function: Weight Function
Warranty: 12 Months
Voltage: 110/220 V
Signal Cable: 5 M
Package: Carton Box
High Light:

4 Ton Heavy Duty Weighing Scales

,

220V Heavy Duty Weighing Scales

,

220V Warehouse Floor Scales

Basic Infomation
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: CH-F
Payment & Shipping Terms
Packaging Details: carton box
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 SETS PER WEEK
Product Description

Digital Weight 1-5 Ton Electronic Warehouse Platform Scales, Heavy Duty Industrial Weighing Floor Scale



Description:
For the load cell ,there are 4pcs for every floor scale.You have 2 choices for the brand ,Keli and zemic ,they both achieved the CE and OIML certificate.

We offers a wide variety of heavy duty scales, from industrial floor scales to mobile and heavy duty weighing scales for any industrial environment. Our heavy duty scale offering is known for industry


Specification:
1. Weighing Capacity: 5000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A)Single deck
1.0*1.0m 1ton 2ton 3ton B)Carbon steel
1.2*1.2m 1ton 2ton 3ton C)U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D)With load cells
1.5*1.5m 1ton 2ton 3ton E)Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F)With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G)5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H)Ramps optional

Features and Advantages

1. Available in a range of standard sizes and capacities.

2. Can be made to any custom size,shape or capacity to meet unique needs.

3. Built for strength,reliability and repeatable accuracy.

4. Carbon steel and baking epoxy paint/

5. Standard Capacity:100Kg-10000Kg.

6. Checkered plate to skid proof.

7. High precision shear beam load cells with adjustable feet and locationg plates.

8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.

9. Digital out-stand indicator (LCD / LED) with high accuaracy.

10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.

11. Ideal for daily,constant usage and heavy duty applications.


Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request

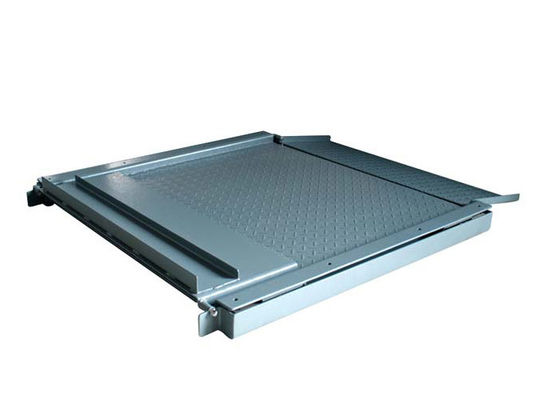

The reverse structure is clear at a glance, and multiple beams ensure the stability of the weighing platform.
Digital 4 Ton Heavy Duty Weighing Scales , 220V Warehouse Floor Scales
Super Load Bearing,Easy to Instal,Stable and Firm,Electronic Display,Weighing Accurately can reach your request.


High Precision:

1. High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.

2. *1 & *2 : Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.



Factory Workshop:

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see



Digital 4 Ton Heavy Duty Weighing Scales , 220V Warehouse Floor Scales



Detailed Explanations:

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.



Company profile:
Winlit is one of the leading manufacturers in Weighing Equipment field in China.Hener has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.





FAQ:
Q: Is it convenient for truck weighbridge scale transportation?

A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?

A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
