Industrial Heavy Duty Floor Pallet Scale 1x1M 3000Kg With RS232 Interface

Industrial Heavy Duty Floor Pallet Scale 1x1M 3000Kg With RS232 Interface

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: HR-FS
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
HR-FS
Material:
Carbon Steel
Warranty:
1 Year
Keyword:
Floor Scale
Interfce:
RS232
Max Capacity:
10T
Accuracy Class:
3
Min Capacity:
300KG
Platform Size:
Customized
High Light:

High Light

High Light:

1x1M Floor Pallet Scale

,

3000Kg Floor Pallet Scale

,

RS232 Heavy Duty Industrial Scale

Trading Information
Minimum Order Quantity:
1
Price:
Price negotiable
Packaging Details:
carton box
Delivery Time:
10-15 days
Payment Terms:
T/T
Supply Ability:
100 sets per day
Product Description

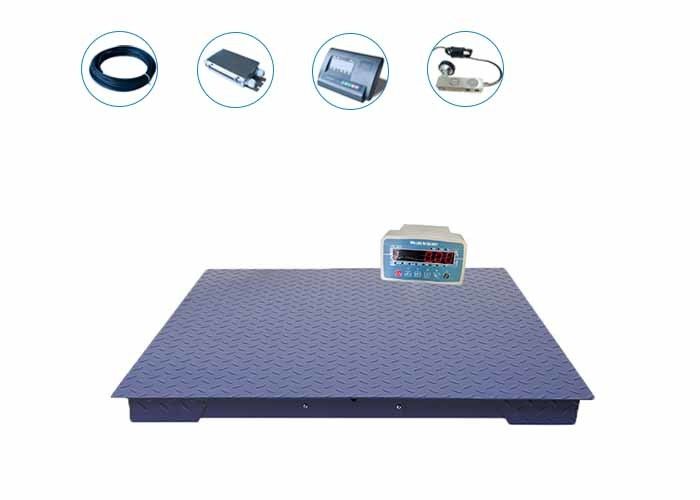

1x1M 3000Kg Heavy Duty Floor Pallet Scale Industrial Floor Scale



Description:

We offer indoor and outdoor floor scales for sale that can support weights up to 10ton. Each industrial weighing scales package includes a weighing deck, digital indicator, and the required cables and cords for immediate use upon arrival. Our industrial duty low profile floor scale packages arrive ready to connect and are factory calibrated.

The material of scale body ,we have carbon steel and stainless steel . Colorful types are carbon steels .For the carbon steel type ,the color can be customized ,we have grey ,black ,green ,white and so on ,so we can provide you every color what you like .

Part of floor scale:
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request
The reverse structure is clear at a glance, and multiple beams ensure the stability of the weighing platform.
Industrial Heavy Duty Floor Pallet Scale 1x1M 3000Kg With RS232 Interface 0
Super Load Bearing,Easy to Instal,Stable and Firm,Electronic Display,Weighing Accurately can reach your request.

Specification:
1. Weighing Capacity: 5000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A)Single deck
1.0*1.0m 1ton 2ton 3ton B)Carbon steel
1.2*1.2m 1ton 2ton 3ton C)U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D)With load cells
1.5*1.5m 1ton 2ton 3ton E)Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F)With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G)5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H)Ramps optional

Features and Advantages

1. Available in a range of standard sizes and capacities.

2. Can be made to any custom size,shape or capacity to meet unique needs.

3. Built for strength,reliability and repeatable accuracy.

4. Carbon steel and baking epoxy paint/

5. Standard Capacity:100Kg-10000Kg.

6. Checkered plate to skid proof.

7. High precision shear beam load cells with adjustable feet and locationg plates.

8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.

9. Digital out-stand indicator (LCD / LED) with high accuaracy.

10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.

11. Ideal for daily,constant usage and heavy duty applications.



High Precision:

1. High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.

2. *1 & *2 : Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.



Factory Workshop:

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see



Industrial Heavy Duty Floor Pallet Scale 1x1M 3000Kg With RS232 Interface 1



Detailed Explanations:

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.



Company profile:
Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.



FAQ:
Q: Is it convenient for truck weighbridge scale transportation?

A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?

A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
