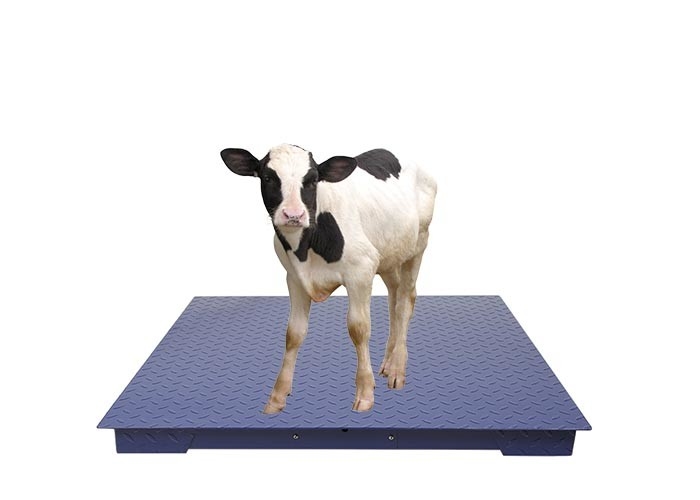

Stainless Steel Plate Heavy Duty Floor Scales Industrial Weighing Scales

Stainless Steel Plate Heavy Duty Floor Scales Industrial Weighing Scales

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: HR-FS
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
HR-FS
Material:
Carbon Steel
Warranty:
1 Year
Color:
Black/blue/gray
Interfce Connection:
RS232
Max Capacity:
10T
Accuracy Class:
III
Min Capacity:
800 Kg
Platform Size:
Customized
High Light:

High Light

High Light:

SS Plate Heavy Duty Floor Scales

,

42kg Heavy Duty Floor Scales

,

4mm Chequer Plate Industrial Weighing Scales

Trading Information
Minimum Order Quantity:
1
Price:
negotiable
Packaging Details:
carton box
Delivery Time:
8-10 days
Payment Terms:
T/T
Supply Ability:
50 sets per week
Product Description

Stainless Steel Plate Heavy Duty Floor Scales Industrial Weighing Scales With High Accuract Load Cells

Services:


At Quality Scales Unlimited, we offer

- Visual inspection and a thorough clean-out
- Testing and Documentation
- Necessary Calibration and Repairs
- Improvement recommendations and installation of new parts
- Data backup and storage
- Placement of signed inspection sticker with date of service
- Post-inspection report



Part of Heavy Duty Floor Scales:
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request
The reverse structure is clear at a glance, and multiple beams ensure the stability of the weighing platform.

Super Load Bearing,Easy to Instal,Stable and Firm,Electronic Display,Weighing Accurately can reach your request.

Specification:
1. Weighing Capacity: 5000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A)Single deck
1.0*1.0m 1ton 2ton 3ton B)Carbon steel
1.2*1.2m 1ton 2ton 3ton C)U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D)With load cells
1.5*1.5m 1ton 2ton 3ton E)Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F)With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G)5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H)Ramps optional



Features and Advantages

- Battery Powered – For areas without a power source or where wires may impede ongoing work, you can opt for models with built-in rechargeable batteries.
- Mechanical – If you require a 1000 lb or 500 kg capacity scale that operates without a power source, you could use an economical all-mechanical beam scale.
- Additional Equipment – Optional equipment like mounting brackets, ramps and clamshells can be added to improve usability.
- Mobility Kits – If you already have a floor scale, but need a mobility feature, we may be able to source a portability kit designed to work with your model.



High Precision:

1. High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.

2. *1 & *2 : Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.



Factory Workshop:

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see



Stainless Steel Plate Heavy Duty Floor Scales Industrial Weighing Scales 0



Detailed Explanations:

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.



FAQ:
Q: Is it convenient for truck weighbridge scale transportation?

A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?

A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
