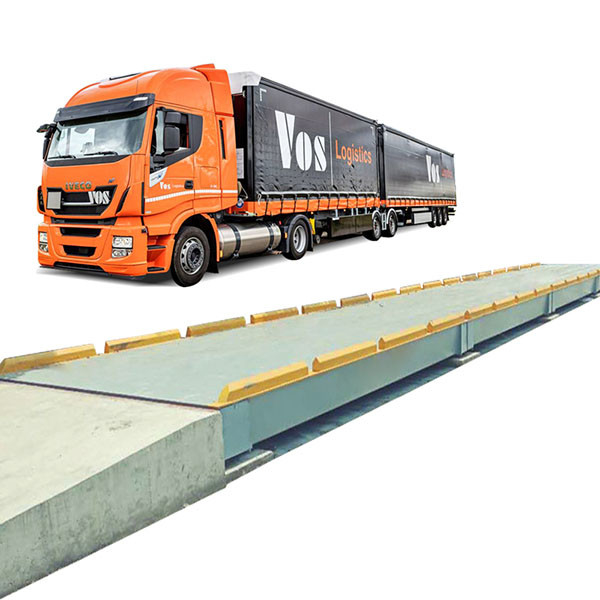

Electric KELI Load Cell Printing Truck Weighbridge Scale 10 Tons-150 Tons

Electric KELI Load Cell Printing Truck Weighbridge Scale 10 Tons-150 Tons

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE, ISO
Model Number: HR-TS-01
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE, ISO
Model Number:
HR-TS-01
Weight Capacity:
100-150Ton
Display Type:
Electric With Printing
Steel Plate Type:
Plain Plate Or Checker Plate
U Beam Height:
300mm-350mm
Voltage:
110v 220v
Installation:
Video, Manual, Online Support
Pit Drawing:
Provide
Warranty:
1 Year
High Light:

High Light

High Light:

10T Printing Truck Weighbridge Scale

,

KELI Load Cell Truck Weighbridge Scale

,

Plain Plate Electronic Weighbridge

Trading Information
Minimum Order Quantity:
1
Price:
Price negotiable
Packaging Details:
nude and wooden case
Delivery Time:
12-20 days
Payment Terms:
T/T
Supply Ability:
30 sets per month
Product Description



Eeectric KELI Load Cell Printing 10 Tons-150 Tons Truck Weighbridge Scale Manufacturer


18 Meter 30 Meter Heavy Duty 100 60 Ton Weighbridge Truck Scale For Sale

The standard configuration of the truck scale is mainly composed of three main components: the load-bearing force transmission mechanism (scale body), the high-precision weighing sensor and the weighing display instrument, so that the basic weighing function of the truck scale can be completed, and it can also be based on different users. Demand, optional printer, large screen display, computer management system to complete the needs of higher level data management and transmission 18 Meter 30 Meter Heavy Duty 100 60 Ton Weighbridge Truck Scale For Sale.

Apply of Truck Scale

Applicable to metallurgy, mining, chemical, food, logistics and other industries, is the ideal choice for weighing trucks, trailers, semi-trailers, container trucks, dump trucks, agricultural vehicles and other heavy-duty vehicles.



Technical parameter of 18 Meter 30 Meter Heavy Duty 100 60 Ton Weighbridge Truck Scale For Sale

The Superiority of our truck scale :
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically


How does a weighbridge work?

Five main components must work together for a truck scale to function properly.
1. Foundation: permanent installations use a concrete foundation.
2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.
3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.
4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.
5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.

Accessories parts (including optional parts):
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable

Detailed information:


Truck Scale Technical Specification
Width 3m, 3.2m
Length 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 120 TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.




U-shaped beam structure, modular design, reasonable structure, convenient installation and maintenance.

Fully automatic continuous welding, fully cavity sealed, corrosion-resistant strong rigidity.

Ultra-thin design, save transportation costs.



Specification:

Width: 3m 3.2m 3.4m

Length: 5m 6m 7m 8m 9m 10m 12m 14m 15m 16m 18m 20m 21m 22m 24m 30m 36m 42m 48m

Capacity: 10t-150t




Plate type:
Electric KELI Load Cell Printing Truck Weighbridge Scale 10 Tons-150 Tons 0

Electric KELI Load Cell Printing Truck Weighbridge Scale 10 Tons-150 Tons 1


FAQ:

Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.


Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.


Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.


Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.


Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.

With OIML, CE, NTEP CERTIFICATIONS
