Industrial Floor Scales

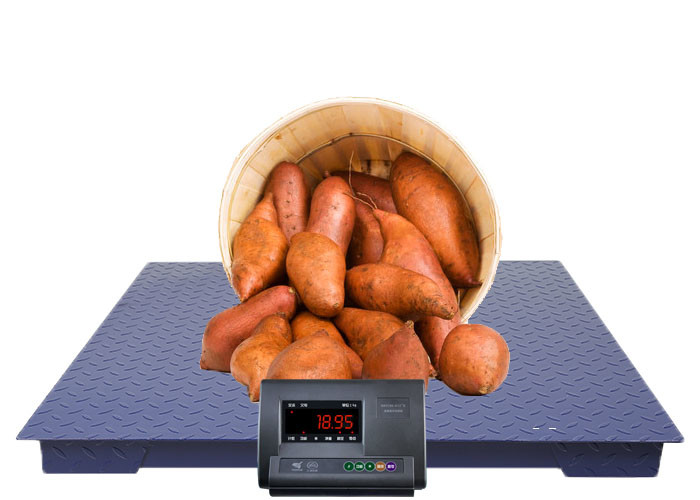

5000KG Industrial Floor Weighing Scales With Indicator

5000KG Industrial Floor Weighing Scales With Indicator

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: CH-F
Detail Information
Place of Origin:
Brand Name:
Model Number:
Floor Scale
Display Play:
Power Supply:
Product Name:
Weighing Scale
Carbon Steel
Weight Function
12 Months
High Light:

High Light

High Light:

5000KG industrial floor weighing scales


industrial floor weighing scales With Indicator


5000KG large floor scale

Trading Information
Minimum Order Quantity:
1 set
Price negotiable
Packaging Details:
carton box
Delivery Time:
5-10 work days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
Product Description

Industrial Floor Weighing Scale In Weighing With OEM Dimension And Color And Optional Indicator


Robust and precise pan thanks to its four load cells. Epoxy painted steel. Two sizes of pans [800 x 1000 and 1 000 x 1 000mm]. Nickel steel load cell with Ip -67 protection and oiml approval. Abs junction box with Ip -67 protection. Lifting handle for easy installation and maintenance. We only provide with high quality products for all of you, and you can believe our quality and if need, can see our factory as below.



Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A)Single deck
1.0*1.0m 1ton 2ton 3ton B)Carbon steel
1.2*1.2m 1ton 2ton 3ton C)U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D)With load cells
1.5*1.5m 1ton 2ton 3ton E)Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F)With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G)5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H)Ramps optional

1. Weighing Capacity: 5000KG

2. With OIML, NTEP and CE approved KELI load cells.

3. Mild-steel structure, U shape beams by modules, powder coated.

4. 4mm chequer plate

5. With YAOHUA A12E indicator.

6. With junction box, and 5m cable.

7. Weight:42kg

8. Accuracy:0.5kg




Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request


Features and Advantages

1. Available in a range of standard sizes and capacities.
2. Can be made to any custom size,shape or capacity to meet unique needs.
3. Built for strength,reliability and repeatable accuracy.
4. Carbon steel and baking epoxy paint/
5. Standard Capacity:100Kg-10000K
6. Checkered plate to skid proof.
7. High precision shear beam load cells with adjustable feet and locationg plates.
8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.
9. Digital out-stand indicator (LCD / LED) with high accuaracy.
10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.
11. Ideal for daily,constant usage and heavy duty applications.


The reverse structure is clear at a glance, and multiple beams ensure the stability of the weighing platform.
Super Load Bearing,Easy to Instal,Stable and Firm,Electronic Display,Weighing Accurately can reach your request.
High Precision

1. High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.

2. Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.


Factory Workshop

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see

5000KG Industrial Floor Weighing Scales With Indicator 05000KG Industrial Floor Weighing Scales With Indicator 1

Detailed Explanations

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.

5000KG Industrial Floor Weighing Scales With Indicator 2

Company profile
Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.


Q: Is it convenient for truck weighbridge scale transportation?

A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?

A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
