Industrial Floor Scales
>
5000kg Capacity Digital Industrial Floor Scale Portable Handle Customized

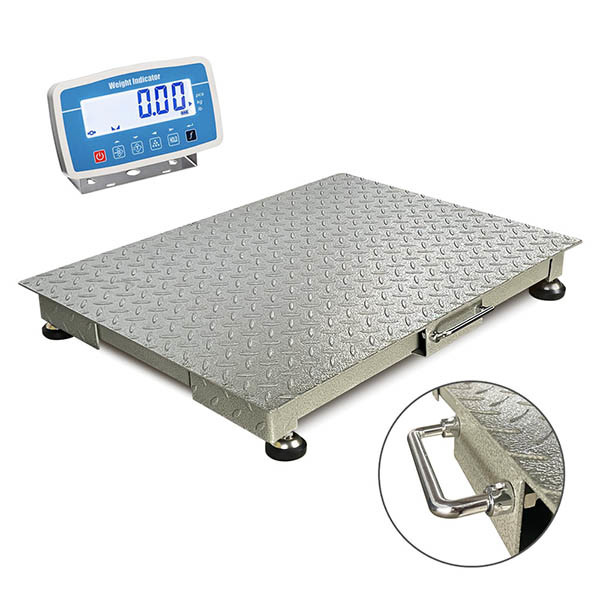

5000kg Capacity Digital Industrial Floor Scale Portable Handle Customized

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: HR-FS
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
HR-FS
Name:
Floor Scale
Warranty:
12 Month
Load Cell:
KELI Guangce
Material:
Carbon Steel /stainless Steel
Max Capacity:
10T
Junction Box:
Plastic /stainless Steel
Weight Capacity:
1-5ton
Platform Size:
Customized
High Light:

High Light

High Light:

5000kg Digital Industrial Floor Scale

,

ODM Industrial Floor Scale

,

Carbon Steel Industrial Pallet Scales

Trading Information
Minimum Order Quantity:
1
Price:
negotiable
Packaging Details:
carton box
Delivery Time:
8-10 days
Payment Terms:
T/T
Supply Ability:
50 sets per week
Product Description

5000kg Capacity Digital Custimized Industrial Floor Scale Portable Handle

Winlit

Winlit Series floor scale platforms are an economical and reliable solution for heavy industrial and commercial applications. Widely used in warehousing, industrial logistics, general weighing. etc. Rugged steel diamond plate surface with heavy duty welded wide channel support. Features NTEP class III approval indicator, IP65 reading.


Features:



Heavy Duty, Accurate, Easy Setup Floor Scale (Non-NTEP)

Load Cell Capacity is 2 times Scale Capacity for Overload Protection 19’ Heavy Duty Quick Connecting Cable

Stainless Steel Enclosure with Stainless Steel Wall Mount Bracket 6 Digits 0.7" High LCD Display with Blue Backlight

Units: KG, LB, OZ


Color optional
Our current regular colors are: black, white, blue, green, army green and stainless steel. Different colors can be customized on request
The surface can be made smooth, threaded. stainless steel material

Applications

Scales are used in many different environments, including where they are prone to getting dirty or exposed to corrosives. Washdown scales are built to be easily cleaned and their surfaces resist the corrosive and damaging effects of frequent exposure to water and cleaning compounds. Most feature a removable or liftable section which allows easy access to the interior parts for thorough cleaning.

Super Load Bearing,Easy to Instal,Stable and Firm,Electronic Display,Weighing Accurately can reach your request.


ACCURATE, EASY SETUP FLOOR SCALE

Heavy-Duty, Accurate, Easy Setup Floor Scale Highest Quality platform scale for industrial use Load Cell Capacity is 2 times Scale Capacity for Overload Protection 19’

SCALE ENSURED ACCURACY

Get Scales That Can Create Accurate & Reliable Results For Your Application Requirements. Offering a Range Of Robust Industrial Weighing Scales Including Bench, Pallet & More. High-quality products. Simple and Efficient. Quick and Reliable.

MULTIPLE-PURPOSE FLOOR SCALES

We stock a wide range of multiple-purpose floor scales ideal for a variety of operating environments.

Scales stocks several floor scales in a variety of styles. They are legal for trade scales that can be used to weigh everything.



Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A) Single deck
1.0*1.0m 1ton 2ton 3ton B) Carbon steel
1.2*1.2m 1ton 2ton 3ton C) U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D) With load cells
1.5*1.5m 1ton 2ton 3ton E) Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F) With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G) 5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H) Ramps optional



Features and Advantages

- Battery Powered – For areas without a power source or where wires may impede ongoing work, you can opt for models with built-in rechargeable batteries.
- Mechanical – If you require a 1000 lb or 500 kg capacity scale that operates without a power source, you could use an economical all-mechanical beam scale.
- Additional Equipment – Optional equipment like mounting brackets, ramps and clamshells can be added to improve usability.
- Mobility Kits – If you already have a floor scale, but need a mobility feature, we may be able to source a portability kit designed to work with your model.



Factory Workshop:

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see



Detailed Explanations:

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.



Company profile:
Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.



Our team

We are a foreign trade team of 10-20 people, and other teams such as design, after-sales, and logistics are always at your service

5000kg Capacity Digital Industrial Floor Scale Portable Handle Customized 0

FAQ:
Q: Is it convenient for truck weighbridge scale transportation?

A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?

A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
