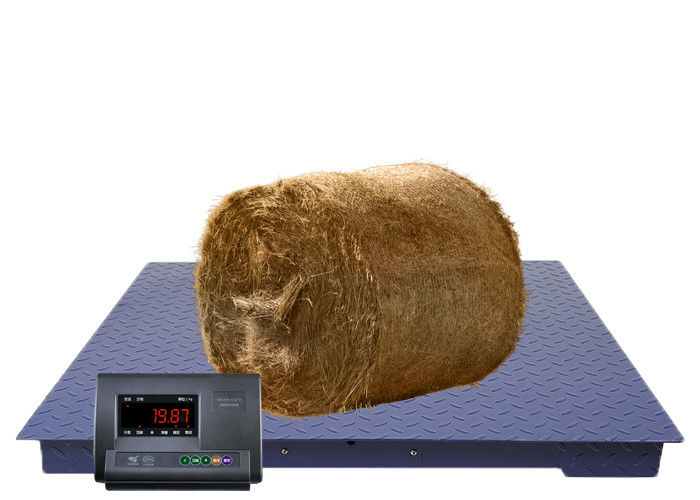

3000KG LCD Electronic Industrial Floor Pallet Scale

3000KG LCD Electronic Industrial Floor Pallet Scale

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: ISO,CE
Model Number: HRFS
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
ISO,CE
Model Number:
HRFS
Material:
Carbon Steel
Width:
Oem
Height:
11mm
Packing:
Carton Box
Display:
LCD/LED
Voltage:
110V/220V
Interface:
RS232
Certificate:
ISO9001
High Light:

High Light

High Light:

3000KG Industrial Floor Pallet Scale

,

LCD Industrial Floor Pallet Scale

,

oem heavy duty floor scales

Trading Information
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
carton box
Delivery Time:
7-10 work days
Payment Terms:
T/T
Supply Ability:
500sets/7days
Product Description

3000Kg Carbon Steel Electronic Platform Weighing Scale Industrial Floor Scales

Factors To Consider Before Buying Industrial Floor Scales:
Accuracy – Our floor scale have load cells made of stainless steel alloys that give you highly accurate results while sustaining pressure. You won’t have to worry about erroneous readings during measuring loads of different weights.
Durability – The floor scales we offer are made with high-quality materials that assure durability as well as longevity. They can be used in rugged conditions. Let us know the kind of environment the floor scales would be exposed to and we will suggest the best scales for the required purpose.
Flexibility – Some of our floor scales have flexible foot pads that allow the machine to work efficiently even on uneven surfaces. The adjustable foot pads make it easy to operate and convenient to use.

Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request
super load bearing,easy to install,stable and firm,electronic display,weighing accurately can reach your request.


Specification:


1. Weighing Capacity: 10000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg

Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A)Single deck
1.0*1.0m 1ton 2ton 3ton B)Carbon steel
1.2*1.2m 1ton 2ton 3ton C)U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D)With load cells
1.5*1.5m 1ton 2ton 3ton E)Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F)With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G)5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H)Ramps optional



Features and Advantages

1. Available in a range of standard sizes and capacities.

2. Can be made to any custom size,shape or capacity to meet unique needs.

3. Built for strength,reliability and repeatable accuracy.

4. Carbon steel and baking epoxy paint/

5. Standard Capacity:100Kg-10000Kg.

6. Checkered plate to skid proof.

7. High precision shear beam load cells with adjustable feet and locationg plates.

8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.

9. Digital out-stand indicator (LCD / LED) with high accuaracy.

10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.

11. Ideal for daily,constant usage and heavy duty applications.



Quality assurance :

Weighing platform is designed according to mechanics principle.
100% inspection according to National standard inspecting method to make sure quality assurance.
Powder coated surface is more smooth and durable.
IP65 washable stainless steel plate,suitable for the food industry.

High precision:
High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.
Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.


Factory Workshop

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see

3000KG LCD Electronic Industrial Floor Pallet Scale 03000KG LCD Electronic Industrial Floor Pallet Scale 1

Company Profile
Our factory is located in Changzhou,Jiangsu Province,which is one of the most developed areas in China.
As one of the leading manufacturers in weighing equipment field in China.Hener has the big weighing equipment line,including
electronic truck scale ,portable axle scale ,floor scale ,pallet scale ,etc.
Winlit is explaining the "Professional Design, Advanced Technology, Reliable Quality "by the perfect products,applications and services .

Certifications
We have ISO9001 quality management system
OIML and CE certificates for accessories such as load cell and indicator.


FAQ

Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.
Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.
Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales. Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.
Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
