| Place of Origin: | China |
| Brand Name: | Winlit |
| Certification: | ISO,CE |
| Model Number: | HRFS |

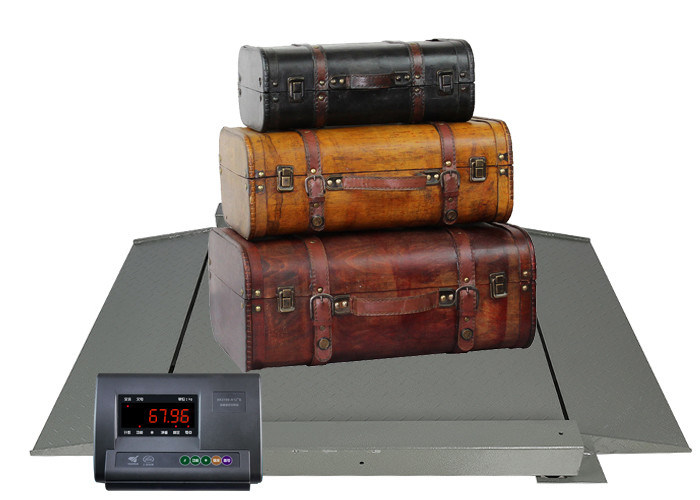

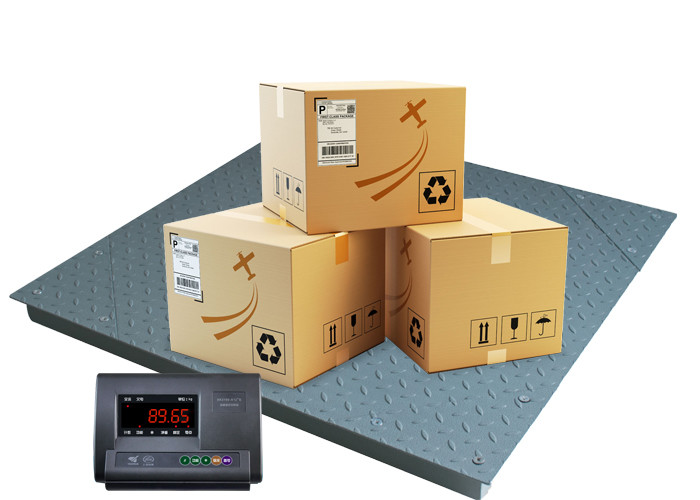

3 Ton Wireless Digital Weighing Scales Platform Industrial Floor Scales
Prevent costly downtime – Preventive maintenance helps in avoiding unforeseen repair costs and equipment breakdowns, which helps in saving money. Moreover, it also ensures reliable performance and maintains compliance with requirements.
Maintain Quality and Accuracy – By offering safe and reliable operations, preventive maintenance provides accurate and quality results. It also extends the equipment life and provides the best performance possible. Therefore, pre-planned and periodic maintenance is necessary for your scale’s accuracy and longevity.
Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request
super load bearing,easy to install,stable and firm,electronic display,weighing accurately can reach your request.
Specification:
1. Weighing Capacity: 10000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
| Dimension | capacity | spectfication |
|---|---|---|
| 0.8*0.8m | 1ton 2ton 3ton | A)Single deck |
| 1.0*1.0m | 1ton 2ton 3ton | B)Carbon steel |
| 1.2*1.2m | 1ton 2ton 3ton | C)U-shape beams by moulds |
| 1.2*1.5m | 1ton 2ton 3ton | D)With load cells |
| 1.5*1.5m | 1ton 2ton 3ton | E)Indicator optional |
| 1.5*2.0m | 1ton 2ton 3ton 5ton | F)With junction box |
| 2.0*2.0m | 1ton 2ton 3ton 5ton | G)5M signal cable |
| 2.0*3.0m | 1ton 2ton 3ton 5ton 10ton | H)Ramps optional |
Features and Advantages
1. Available in a range of standard sizes and capacities.
2. Can be made to any custom size,shape or capacity to meet unique needs.
3. Built for strength,reliability and repeatable accuracy.
4. Carbon steel and baking epoxy paint/
5. Standard Capacity:100Kg-10000Kg.
6. Checkered plate to skid proof.
7. High precision shear beam load cells with adjustable feet and locationg plates.
8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.
9. Digital out-stand indicator (LCD / LED) with high accuaracy.
10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.
11. Ideal for daily,constant usage and heavy duty applications.
| TYPE | ADVANTAGE |
| Single deck floor scale | It is the most normal type,and widely used in industrial ,logidtics and warehouses |
| Double deck floor scale | There is no need to worry about the irregular floor anymore,the double decks floor scale can be used anywhere |
| Extra low floor scale | The double deck platform is suitable for miniature industries and mining enterprices and the station when manual haulage is general |
Quality assurance :
Weighing platform is designed according to mechanics principle.
100% inspection according to National standard inspecting method to make sure quality assurance.
Powder coated surface is more smooth and durable.
IP65 washable stainless steel plate,suitable for the food industry.
High precision:
The precision depends on the load cells for floor scale .
We use KELI /ZEMIC load cell ,which are with high quality.
Factory Workshop
1. Amin the universal pin at the screw hole
2. Turn up,adjust the height
3. Turn off the white screw and pull out the cable
4. Lock the slot
5. Plug the connector into the intrument
6. The installation is complete,you can see
Company Profile
Our factory is located in Changzhou,Jiangsu Province,which is one of the most developed areas in China.
As one of the leading manufacturers in weighing equipment field in China.Winlit has the big weighing equipment line,including
electronic truck scale ,portable axle scale ,floor scale ,pallet scale ,etc.
We insist on the core values of "honest ,trust-worthy,innovation,customer first ,active ,efficient and excellence"
Winlit ,looking forward to co-operate with you !
Product physical picture
FAQ
Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.
Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.
Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales. Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.
Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
