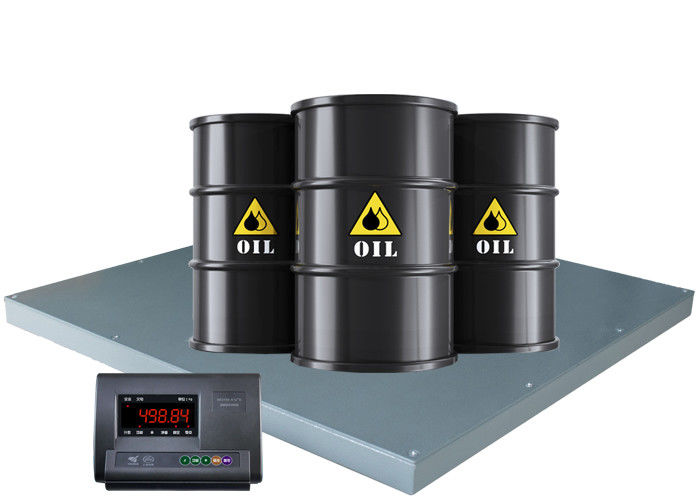

Cheap Price1X1M 2T Industrial Floor Scales With Indicator And Load Cell
Industrial floor scales are used in a wide range of locations, both indoors and outdoors. Additionally, the type of items they may need to weigh can also vary, so to increase their versatility you can invest in accessories to get the job done without needing to invest in multiple scales or additional weighing equipment. For example, Pit Riser Stand – These are sturdy frames which can be used to anchor a floor scale to an existing pit which is deeper than the standard depth for a particular scale. It is installed under the scale using anchor bolts and increases the height of the system.
Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request
super load bearing,easy to install,stable and firm,electronic display,weighing accurately can reach your request.
Specification:
1. Weighing Capacity: 10000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
Dimension | capacity | spectfication |
---|---|---|
0.8*0.8m | 1ton 2ton 3ton | A)Single deck |
1.0*1.0m | 1ton 2ton 3ton | B)Carbon steel |
1.2*1.2m | 1ton 2ton 3ton | C)U-shape beams by moulds |
1.2*1.5m | 1ton 2ton 3ton | D)With load cells |
1.5*1.5m | 1ton 2ton 3ton | E)Indicator optional |
1.5*2.0m | 1ton 2ton 3ton 5ton | F)With junction box |
2.0*2.0m | 1ton 2ton 3ton 5ton | G)5M signal cable |
2.0*3.0m | 1ton 2ton 3ton 5ton 10ton | H)Ramps optional |
Quality assurance :
Weighing platform is designed according to mechanics principle.
100% inspection according to National standard inspecting method to make sure quality assurance.
Powder coated surface is more smooth and durable.
IP65 washable stainless steel plate,suitable for the food industry.
TYPE | ADVANTAGE |
Single deck floor scale | It is the most normal type,and widely used in industrial ,logidtics and warehouses |
Double deck floor scale | There is no need to worry about the irregular floor anymore,the double decks floor scale can be used anywhere |
Extra low floor scale | The double deck platform is suitable for miniature industries and mining enterprices and the station when manual haulage is general |
High precision:
The precision depends on the load cells for floor scale .
We use KELI /ZEMIC load cell ,which are with high quality.
Factory Workshop
1. Amin the universal pin at the screw hole
2. Turn up,adjust the height
3. Turn off the white screw and pull out the cable
4. Lock the slot
5. Plug the connector into the intrument
6. The installation is complete,you can see
Company Profile
Our factory is located in Changzhou,Jiangsu Province,which is one of the most developed areas in China.
As one of the leading manufacturers in weighing equipment field in China.Winlit has the big weighing equipment line,including
electronic truck scale ,portable axle scale ,floor scale ,pallet scale ,etc.
We insist on the core values of "honest ,trust-worthy,innovation,customer first ,active ,efficient and excellence"
Winlit,looking forward to co-operate with you !
Product & Exhibition
FAQ
Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.
Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.
Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales. Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.
Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
