| Place of Origin: | China |
| Brand Name: | Winlit |
| Certification: | ISO,CE |
| Model Number: | HRFS |
3 Ton Floor Livestock Scale Horse Weighing Cow Scale For Industrial Use
Scales are used in many different environments, including where they are prone to getting dirty or exposed to corrosives. Washdown scales are built to be easily cleaned and their surfaces resist the corrosive and damaging effects of frequent exposure to water and cleaning compounds. Most feature a removable or liftable section which allows easy access to the interior parts for thorough cleaning.

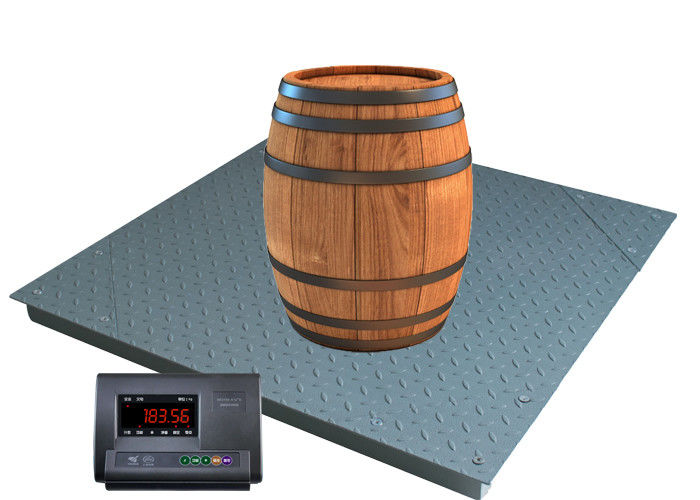

Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. Indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request
Indicators optional
1. XK3190-A12E
It is with built-in rechargeable battery and LED display.Which is in my hand,you can find this is the yaohua A12E indicator,there are 5 buttons,the first one is hash key ,when opening the indicator,press this button then you can enter the calibration state that you can set the division value , decimal point setting, full capacity setting, zero point calibration and full scale calibration.
2. XK3190-A27E
It is with 2-inch special bright LED large display screen, 10 times automatic amplification function, high-precision digital to analog conversion technology, equipped with RS-232C communication port and large screen communication port.
3. XK3190-A23P
It is a three window LCD indicator with built-in micro printer. It is suitable for static weighing system within 4 load cells like electronic platform floor scale and beam scale, .It has standard pricing function, with cumulative function, which can display and print details and cumulative documents.
super load bearing,easy to install,stable and firm,electronic display,weighing accurately can reach your request.
Specification:
1. Weighing Capacity: 10000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
| Dimension | capacity | spectfication |
|---|---|---|
| 0.8*0.8m | 1ton 2ton 3ton | A)Single deck |
| 1.0*1.0m | 1ton 2ton 3ton | B)Carbon steel |
| 1.2*1.2m | 1ton 2ton 3ton | C)U-shape beams by moulds |
| 1.2*1.5m | 1ton 2ton 3ton | D)With load cells |
| 1.5*1.5m | 1ton 2ton 3ton | E)Indicator optional |
| 1.5*2.0m | 1ton 2ton 3ton 5ton | F)With junction box |
| 2.0*2.0m | 1ton 2ton 3ton 5ton | G)5M signal cable |
| 2.0*3.0m | 1ton 2ton 3ton 5ton 10ton | H)Ramps optional |
Features and Advantages
1. Available in a range of standard sizes and capacities.
2. Can be made to any custom size,shape or capacity to meet unique needs.
3. Built for strength,reliability and repeatable accuracy.
4. Carbon steel and baking epoxy paint/
5. Standard Capacity:100Kg-10000Kg.
6. Checkered plate to skid proof.
7. High precision shear beam load cells with adjustable feet and locationg plates.
8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.
9. Digital out-stand indicator (LCD / LED) with high accuaracy.
10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.
11. Ideal for daily,constant usage and heavy duty applications.
| TYPE | ADVANTAGE |
| Single deck floor scale | It is the most normal type,and widely used in industrial ,logidtics and warehouses |
| Double deck floor scale | There is no need to worry about the irregular floor anymore,the double decks floor scale can be used anywhere |
| Extra low floor scale | The double deck platform is suitable for miniature industries and mining enterprices and the station when manual haulage is general |
Quality assurance :
Weighing platform is designed according to mechanics principle.
100% inspection according to National standard inspecting method to make sure quality assurance.
Powder coated surface is more smooth and durable.
IP65 washable stainless steel plate,suitable for the food industry.
High precision:
The precision depends on the load cells for floor scale .
We use KELI /ZEMIC load cell ,which are with high quality.
Company Profile
Our factory is located in Changzhou,Jiangsu Province,which is one of the most developed areas in China.
As one of the leading manufacturers in weighing equipment field in China.Winlit has the big weighing equipment line,including
electronic truck scale ,portable axle scale ,floor scale ,pallet scale ,etc.
We insist on the core values of "honest ,trust-worthy,innovation,customer first ,active ,efficient and excellence"
Winlit,looking forward to co-operate with you !
Certifications
We have ISO9001 quality management system
OIML and CE certificates for accessories such as load cell and indicator.
FAQ
Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.
Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.
Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales. Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.
Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
