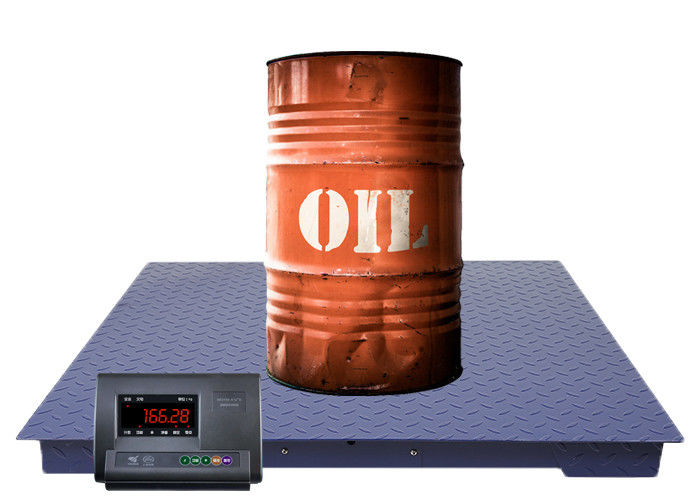

1.5*1.5M Platform Floor Scales for Factory Industrial Stainless Steel 1 Ton
Barrels, drums and palletized items can be particularly difficult to load and keep steady while weighing because of their awkward size and shape. Barrel, Drum and Pallet Scales (BDP) make weighing these items easier and safer with customized weighing platforms for securing these materials. The customized platforms also address the challenge of weighing drums or barrels of liquid items that slosh with movement, affecting the accuracy of the weight. Our scales provide a stable and balanced measuring platform for these items.
Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. Indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request
The reverse structure is clear at a glance, and multiple beams ensure the stability of the weighing platform.
Indicators optional
1. XK3190-A12E
It is with built-in rechargeable battery and LED display.Which is in my hand,you can find this is the yaohua A12E indicator,there are 5 buttons,the first one is hash key ,when opening the indicator,press this button then you can enter the calibration state that you can set the division value , decimal point setting, full capacity setting, zero point calibration and full scale calibration.
2. XK3190-A27E
It is with 2-inch special bright LED large display screen, 10 times automatic amplification function, high-precision digital to analog conversion technology, equipped with RS-232C communication port and large screen communication port.
3. XK3190-A23P
It is a three window LCD indicator with built-in micro printer. It is suitable for static weighing system within 4 load cells like electronic platform floor scale and beam scale, .It has standard pricing function, with cumulative function, which can display and print details and cumulative documents.
Super Load Bearing,Easy to Instal,Stable and Firm,Electronic Display,Weighing Accurately can reach your request.
Specification:
1. Weighing Capacity: 10000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
Dimension | capacity | spectfication |
---|---|---|
0.8*0.8m | 1ton 2ton 3ton | A)Single deck |
1.0*1.0m | 1ton 2ton 3ton | B)Carbon steel |
1.2*1.2m | 1ton 2ton 3ton | C)U-shape beams by moulds |
1.2*1.5m | 1ton 2ton 3ton | D)With load cells |
1.5*1.5m | 1ton 2ton 3ton | E)Indicator optional |
1.5*2.0m | 1ton 2ton 3ton 5ton | F)With junction box |
2.0*2.0m | 1ton 2ton 3ton 5ton | G)5M signal cable |
2.0*3.0m | 1ton 2ton 3ton 5ton 10ton | H)Ramps optional |
The platform adopts high quality of anti-skid embossing plate,stainless steel material makesthe range of application wider.
TYPE | ADVANTAGE |
Single deck floor scale | It is the most normal type,and widely used in industrial ,logidtics and warehouses |
Double deck floor scale | There is no need to worry about the irregular floor anymore,the double decks floor scale can be used anywhere |
Extra low floor scale | The double deck platform is suitable for miniature industries and mining enterprices and the station when manual haulage is general |
Quality assurance :
Weighing platform is designed according to mechanics principle.
100% inspection according to National standard inspecting method to make sure quality assurance.
Powder coated surface is more smooth and durable.
IP65 washable stainless steel plate,suitable for the food industry.
High precision:
The precision depends on the load cells for floor scale .
We use KELI /ZEMIC load cell ,which are with high quality.
Factory Workshop
1. Amin the universal pin at the screw hole
2. Turn up,adjust the height
3. Turn off the white screw and pull out the cable
4. Lock the slot
5. Plug the connector into the intrument
6. The installation is complete,you can see
Company Profile
Our factory is located in Changzhou,Jiangsu Province,which is one of the most developed areas in China.We are the manufacturer which
has been specializing in weighing equipment for 16 years ,and we have rich experience in the field .
We are nearby Shanghai port ,which is very convenient and can help our cudtomers to save much shipping cost.
As one of the leading manufacturers in weighing equipment field in China.Winlit has the big weighing equipment line,including
electronic truck scale ,portable axle scale ,floor scale ,pallet scale ,etc.
We export many products to many countries ,such as Japan, Spain, Chile ,UAE,Philippine ,Mexico and so on .
We insist on the core values of "honest ,trust-worthy,innovation,customer first ,active ,efficient and excellence"
Winlit,looking forward to co-operate with you !
Certifications
We have ISO9001 quality management system
OIML and CE certificates for accessories such as load cell and indicator.
FAQ
Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.
Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.
Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales. Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.
Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
