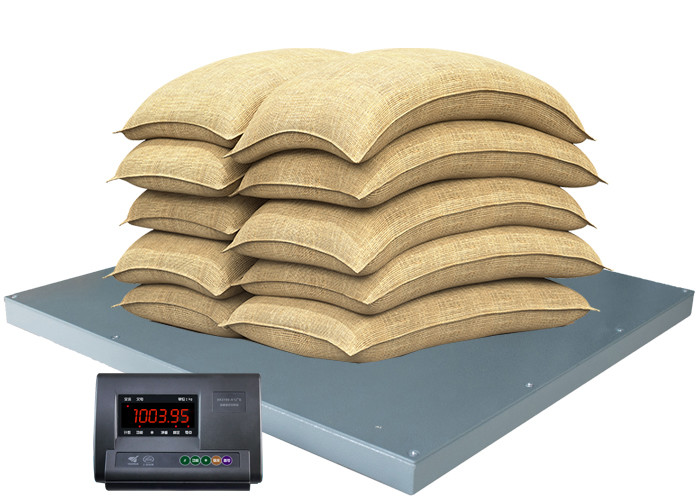

Warehouse 1.5M 60HZ Industrial Floor Scales With Digital Display

Warehouse 1.5M 60HZ Industrial Floor Scales With Digital Display

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE,ISO9001
Model Number: HR-F1
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE,ISO9001
Model Number:
HR-F1
Product Name:
Industrial Floor Scale
Material:
Q235B Carbon Steel
Logo:
Oem
Connection:
5m Signal Cable With Standard Plug
Power Supply:
110V-240V,50-60HZ
Unit:
1 Set
Floor Scale Height:
Low Profile 12cm
Weighing Capacity:
5000Kg
Highlight:

High Light

Highlight:

60HZ Industrial Floor Scales

,

1.5M Industrial Floor Scales

,

60HZ low profile floor scale

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Carton Box with Wooden Pallet
Delivery Time:
5-7 work days
Payment Terms:
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability:
1000 sets per month
Product Description

Warehouse Heavy Duty Industrial Pallet Floor Scales with Digital Display Indicator (48x72)





Floor scales, as the name suggests, are scales which sit on a flooring surface or are incorporated into the flooring with a pit frame, making the scale level with the flooring. We offer floor scales with 1,000 to 80,000 lb load capacities with Legal-for-Trade applications. The weighing surface, or platform of the scale, is available in many dimensions and surface materials depending on your needs.



Specification:



Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A)Single deck
1.0*1.0m 1ton 2ton 3ton B)Carbon steel
1.2*1.2m 1ton 2ton 3ton C)U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D)With load cells
1.5*1.5m 1ton 2ton 3ton E)Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F)With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G)5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H)Ramps optional


1. Weighing Capacity: 5000KG


2. With OIML, NTEP and CE approved KELI load cells.


3. Mild-steel structure, U shape beams by modules, powder coated.


4. 4mm chequer plate


5. With YAOHUA A12E indicator.


6. With junction box, and 5m cable.


7. Weight:42kg


8. Accuracy:0.5kg







Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request



Features and Advantages

1. Available in a range of standard sizes and capacities.
2. Can be made to any custom size,shape or capacity to meet unique needs.
3. Built for strength,reliability and repeatable accuracy.
4. Carbon steel and baking epoxy paint/
5. Standard Capacity:100Kg-10000K
6. Checkered plate to skid proof.
7. High precision shear beam load cells with adjustable feet and locationg plates.
8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.
9. Digital out-stand indicator (LCD / LED) with high accuaracy.
10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.
11. Ideal for daily,constant usage and heavy duty applications.



The reverse structure is clear at a glance, and multiple beams ensure the stability of the weighing platform.

Super Load Bearing,Easy to Instal,Stable and Firm,Electronic Display,Weighing Accurately can reach your request.

High Precision

1. High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.

2. Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.



Factory Workshop

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see

Warehouse 1.5M 60HZ Industrial Floor Scales With Digital Display 0Warehouse 1.5M 60HZ Industrial Floor Scales With Digital Display 1

Detailed Explanations

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.

Warehouse 1.5M 60HZ Industrial Floor Scales With Digital Display 2

Company profile
Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.



FAQ
Q: Is it convenient for truck weighbridge scale transportation?

A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?

A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
