120 Ton Carbon Steel Over The Road Truck Weighbridge

1
MOQ
Price negotiable
Price
120 Ton Carbon Steel Over The Road Truck Weighbridge
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Carbon Steel
Warranty: 3 Years
Indicator Screen: LED/LCD
Load Cell: KELI
Function: Weigh
Plug: As Your Request
Precision: 20kg
Pit Type: Pitless Or Pit
High Light:

Over The Road Truck Weighbridge

,

120 Ton Truck Weighbridge

,

120 Ton Weighbridge Truck Scale

Basic Infomation
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: HR-TS
Payment & Shipping Terms
Packaging Details: nude and wooden case
Delivery Time: 12-20 days
Payment Terms: T/T
Supply Ability: 30 sets per month
Product Description

120 Ton OEM Dimension Carbon Steel Truck Scales for Over-the-Road Trucks



Both steel- and concrete-deck Hener truck scales use the proven design of orthotropic ribs. This unique design helps direct the pressure of a heavy load away from areas that would be fatigued by stress. Continuous welds along the seam of each rib to the deck ensure lasting strength.



How does a weighbridge work?



Five main components must work together for a truck scale to function properly.

1. Foundation: permanent installations use a concrete foundation.

2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.

3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.

4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.

5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.

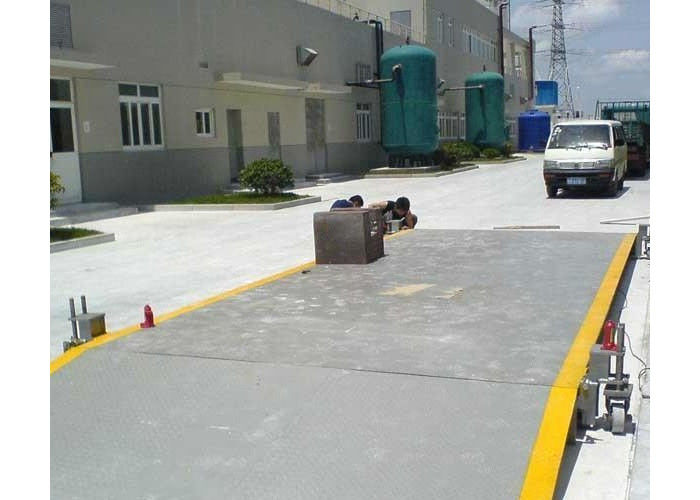

120 Ton Carbon Steel Over The Road Truck Weighbridge



Detailed information:



Truck Scale Technical Specification
Width 3m, 3.2m
Length 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 120 TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.



The Superiority of our truck scale :


* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically



Accessories parts (including optional parts):


* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable



Product Types:



Pit free structure Shallow foundation pit structure
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level





FAQ:



Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.



Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.



Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.



Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.



Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.

With OIML, CE, NTEP CERTIFICATIONS
