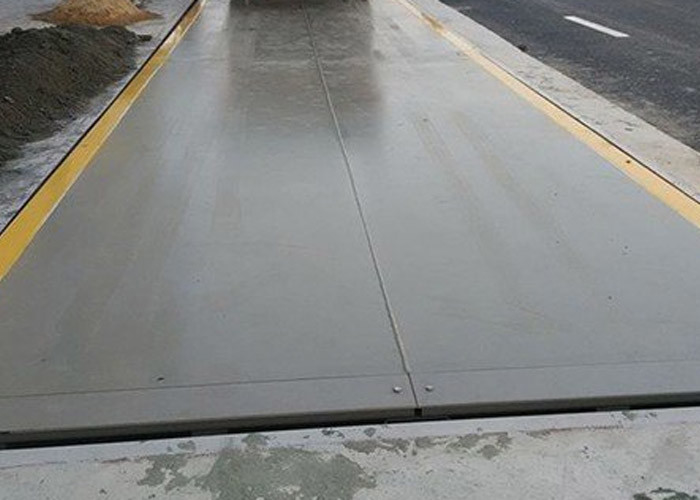

Mobile Electronic Truck Scale Pit Less Heavy Duty Weighbridge
|Signal Cable Length||20/30m||Voltage||110v 220v|
|Installation||By Customer||Pit Drawing||Provide|
22CBM Mobile Electronic Truck Scale,
Pitless Mobile Electronic Truck Scale,
Anti Corrosion Heavy Duty Weighbridge
Factory Outlets Mobile Electronic Truck Scale Pit Less Heavy Duty Weighbridge
Our truck scales are available in a wide range of standard and customized configurations to suit your application needs. We offer truck scales in standard sizes between 3m to 3.8m wide that suit most customers. Where standard doesn't suit, we can produce almost any length combination thanks to our modular design, with either steel or concrete driving surfaces, and can be either above ground or pit mounted.
The Superiority of our truck scale :
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically
Our versatile truck scales can be paired with a range of indicators, software and accessories for a complete weighing and data management solution.
Truck Scale systems provide a solution to weigh trucks, trailers or any other type of wheeled vehicle, quickly and accurately.
the width of the truck scale can be 3 meters ,3.2meters ,3.4meters, but 3 meters is the most normal width.
For the length of truck scale ,we have 6, 8 ,10,16,18 ,20 and so on,you know the truck scale length depends on the length of truck or trailer you want to weigh.
How does a weighbridge work?
Five main components must work together for a truck scale to function properly.
1. Foundation: permanent installations use a concrete foundation.
2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.
3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.
4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.
5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.
Accessories parts (including optional parts):
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable
|Truck Scale Technical Specification|
|Power supply||110V±10%；220V±10% AC or DC,50 or 60Hz|
|Capacity range||120 TON|
|Thickness of plate||8~20mm|
|Structure||6mm U-shaped beams|
|Painting||Anti rust and anti corrsion|
|Packing details||In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.|
|Pit free structure||Shallow foundation pit structure|
|No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off||Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level|
Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
With OIML, CE, NTEP CERTIFICATIONS
