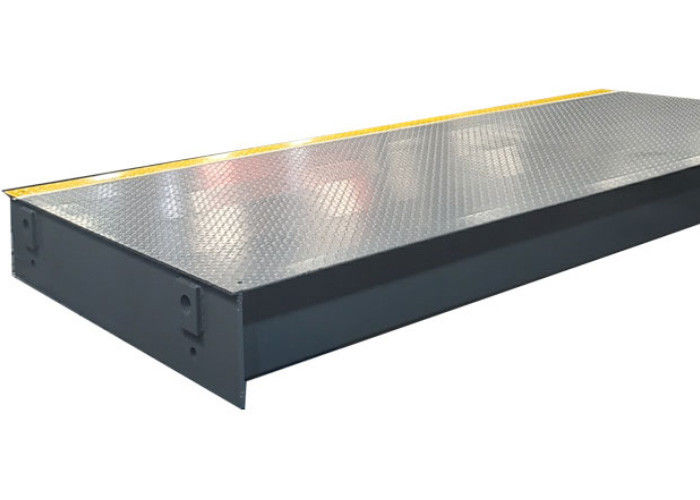

20KG Precision Truck Scale Weighbridge 3x18m With KELI Load Cell
Product Details
| Material | Carbon Steel | Warranty | 3 Years |
|---|---|---|---|
| Indicator Screen | LED/LCD | Load Cell | KELI |
| Weighing Range | 60-120 Ton | Battery | Rechargeable |
| Precision | 20kg | Pit Type | Pitless Or Pit |
| High Light | 20KG Precision Truck Scale Weighbridge,Truck Scale Weighbridge 3x18m,KELI Load Cell Lorry Weighbridge |
||
Product Description
60-100 Ton 3x18m Carbon Steel Truck Scales Weighbridge For Weighing Function
Truck scales or weighbridges are industrial scales that are capable of weighing trucks of all sizes. The most common use of a truck scale is to determine the weight of bulk goods being bought and sold in truckload-sized quantities. In those cases, information from the scale is a crucial part of the business transaction.
What is a load cell?
The sensory devices used to measure the weight on the scale. Load cells are the heart of any weighbridge. They are the sensors that measure the weight of objects on the scale deck. Most truck scales require 6 to 12 load cells. They must work together flawlessly to provide accurate weight readings.
Detailed information:
| Truck Scale Technical Specification | |
| Width | 3m, 3.2m |
| Length | 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m |
| Power supply | 110V±10%；220V±10% AC or DC,50 or 60Hz |
| Accurancy class | OIML(III) |
| Capacity range | 60-120 TON |
| Safe overload | 150% |
| Material | Q235steel |
| Thickness of plate | 8~20mm |
| Structure | 6mm U-shaped beams |
| Painting | Anti rust and anti corrsion |
| Quality system | ISO9001:2020 |
| Certificate | CE |
| Packing details | In 20"or 40" container, modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons. |
The Superiority of our truck scale :
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically
Product Types:
| Pit free structure | Shallow foundation pit structure |
| No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off | Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level |
FAQ:
Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
With OIML, CE, NTEP CERTIFICATIONS
