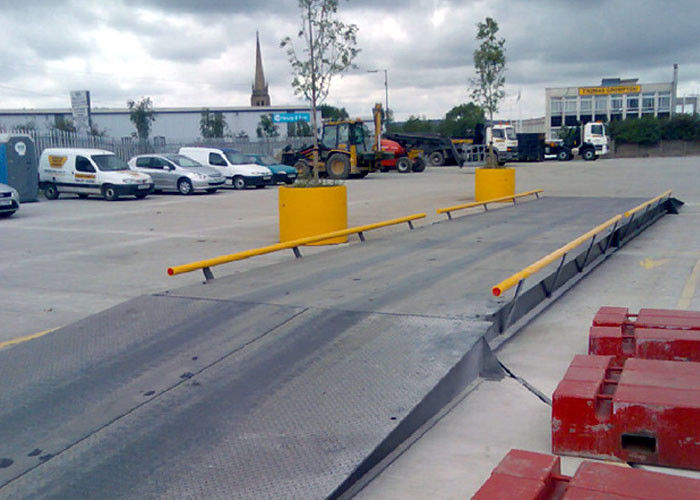

150 Ton 3x20m Carbon Steel Truck Scale With Weighing System and RS-232 Connection Port
The scale functions much like a cash register. Enforcement agencies use weighbridges to check for a truck's compliance with road-going vehicle weight limits and Chain of Responsibility. They are also used to monitor intake and output volumes at facilities, such as solid-waste processing and recycling centers, construction sites and more.
How long is an average weighbridge?
In applications in which you need to weigh the entire truck, your weighbridge must be long enough to hold all of the wheels of the longest truck you plan to weigh. That usually means 18 to 24 metres or 60 to 80 feet long for tractor-semitrailers, and up to 30 metres or 100 feet for double trailers. The overall maximum length of over-the-road tractor trailers is typically regulated by regional/state/provincial authorities.
Detailed information:
Truck Scale Technical Specification | |
Width | 3m, 3.2m, 3.4m |
Length | 6m,8m, 10m,12m,14m,16m,18m,20m,22m |
Power supply | 110V±10%;220V±10% AC or DC,50 or 60Hz |
Accurancy class | OIML(III) |
Capacity range | 150 TON |
Safe overload | 150% |
Material | Q235 steel |
Thickness of plate | 8~20mm |
Structure | 6mm U-shaped beams |
Painting | Anti rust and anti corrsion |
Quality system | ISO9001:2020 |
Certificate | CE |
Packing details | In 20"or 40" container, modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons. |
The Superiority of our truck scale :
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically
Product Types:
Pit free structure | Shallow foundation pit structure |
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off | Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level |
FAQ:
Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
With OIML, CE, NTEP CERTIFICATIONS
