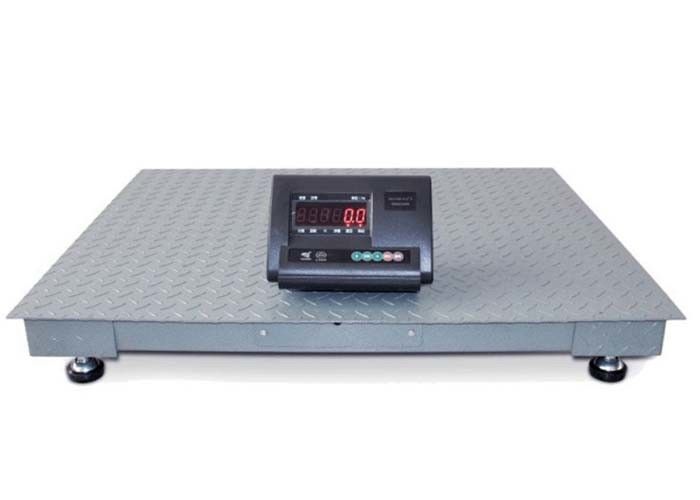

Q235B Carbon Steel Digital Floor Scales 5000KG 4 Mm Thick

Q235B Carbon Steel Digital Floor Scales 5000KG 4 Mm Thick

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE,ISO9001
Model Number: HR-F1
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE,ISO9001
Model Number:
HR-F1
Product Name:
Industrial Floor Scale
Material:
Q235B Carbon Steel/Stainless Steel
Division Range:
0.2-0.5Kg
Connection Cable:
5m Signal Cable
Power Supply:
110V-240V,50-60HZ/Customized
Warranty:
1 Year
Floor Scale Height:
Low Profile 12cm
Color:
Customized Color
Packing:
Carton Box
MOQ:
1 Set
High Light:

High Light

High Light:

Q235B Carbon Steel Digital Floor Scales

,

Digital Floor Scales 5000KG

,

4 Mm Thick Industrial Floor Scales

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Carton Box or Wooden box
Delivery Time:
5-7 work days
Payment Terms:
L/C, T/T
Supply Ability:
1000 sets per month
Product Description

4'x6' Digital Floor Scales 5-10 ton - 6 mm Deck Thickness More Durable Than Others at 4 mm Thick Floor Weight Scale

Our 4’x6’ industrial pallet scale has been expertly built for the labor demands of warehouse, factory, and commercial working environments. Each 4’x6’ digital floor scale is composed of heavy-duty steel with diamond tread plates and four alloy steel load cells, so it can withstand the rigors of daily use for years to come. Our scales can weigh any material between 5,000 and 10,000 pounds and are guaranteed to provide an accurate, clearly displayed weight every single time. These 4’x6’ digital floor scales have been built with efficiency in mind. Every scale features our convenient quick-connect cable system, a top access junction box with a bright 1” LED display that weighs in both pounds and kilograms, and a variety of optional attachments that are geared to make a difference in workplace productivity.



Specification:
1. Weighing Capacity: 5000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator/optional indicator
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg



Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A) Single deck
1.0*1.0m 1ton 2ton 3ton B) Carbon steel
1.2*1.2m 1ton 2ton 3ton C) U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D) With load cells
1.5*1.5m 1ton 2ton 3ton E) Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F) With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G) 5M signal cable



Features and Advantages:

1. Available in a range of standard sizes and capacities.

2. Can be made to any custom size,shape or capacity to meet unique needs.

3. Built for strength,reliability and repeatable accuracy.

4. Carbon steel and baking epoxy paint

5. Standard Capacity:500Kg-10000Kg.

6. Checkered plate to skid proof.

7. High precision shear beam load cells with adjustable feet and locationg plates.

8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.

9. Digital out-stand indicator (LCD / LED) with high accuaracy.

10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.

11. Ideal for daily,constant usage and heavy duty applications.



High Precision:

1. High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.

2. Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.



Factory Workshop:

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see

Q235B Carbon Steel Digital Floor Scales 5000KG 4 Mm Thick 0Q235B Carbon Steel Digital Floor Scales 5000KG 4 Mm Thick 1

Detailed Explanations:

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.

Q235B Carbon Steel Digital Floor Scales 5000KG 4 Mm Thick 2



FAQ
Q: Is it convenient for truck weighbridge scale transportation?

A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?

A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
