Heavy Duty Weighbridge
>
100T Monster Vehicle Weighing Scale Heavy Duty Truck Scale Weighbridge Price

100T Monster Vehicle Weighing Scale Heavy Duty Truck Scale Weighbridge Price

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: HR-TS
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
HR-TS
Material:
Carbon Steel
Signal Cable:
20-30m
Package:
Nude
Load Cell:
KELI
Function:
Weigh
Voltage:
110/220 V
Division:
20kg
Product Name:
Truck Scale
High Light:

High Light

High Light:

100T Monster Vehicle Weighing Scale

,

Anti Rust Vehicle Weighing Scale

,

OIML Heavy Duty Truck Scale

Trading Information
Minimum Order Quantity:
1
Price:
Price negotiable
Packaging Details:
nude and wooden case
Delivery Time:
12-20 days
Payment Terms:
T/T
Supply Ability:
30 sets per month
Product Description

100T Monster Vehicle Weighing Scale Heavy Duty Truck Scale Weighbridge Price



  • Fully assembled, 100% welded construction
    - extra strength and no weak spots
  • Industry leading weight sensors
    - quick accurate weigh readings
  • Cost effective ownership
    - lasts longer than competitor truck scales and less downtime
  • Modular bolt less sections
    - simple hook design allows quick and easy installation and extension
  • Performance guaranteed
    -  ISO tested CE certificate before leaving our factory
  • 5 to 15 years warranty for scale body
    - makes the cost of ownership even lower

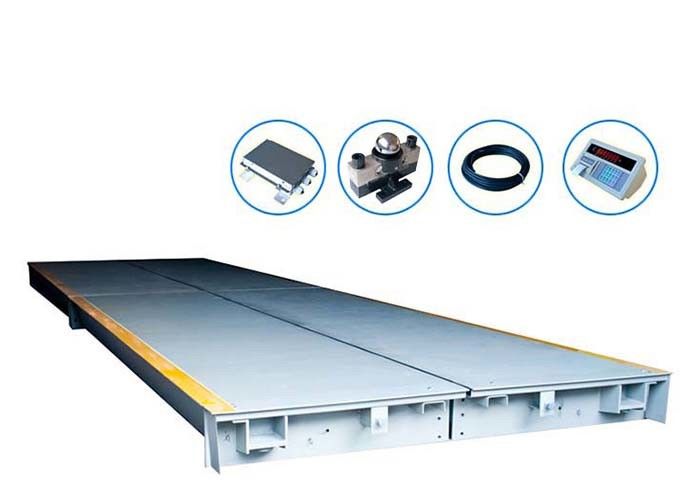

How does a weighbridge work?



Five main components must work together for a truck scale to function properly.

1. Foundation: permanent installations use a concrete foundation.

2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.

3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.

4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.

5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.



Detailed information:



Truck Scale Technical Specification
Width 3m, 3.2m
Length 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 120 TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.



The Superiority of our truck scale :


* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically



Accessories parts (including optional parts):


* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable



Product Types:



Pit free structure Shallow foundation pit structure
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level



PACKAGE:

100T Monster Vehicle Weighing Scale Heavy Duty Truck Scale Weighbridge Price 0

FAQ:



Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.



Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.



Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.



Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.



Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.

With OIML, CE, NTEP CERTIFICATIONS
