Platform Floor Scale Heavy Duty 2 Ton 1.5*1.5M 1.2*1.2M 1.0*1.0M
1.0x1.0M Platform Floor Scale
,Heavy Duty Platform Floor Scale
,Industrial Weighing Scale 2T
2Ton 1.5*1.5M 1.2*1.2M 1.0*1.0M Platform Floor Scale Heavy Duty Weighing Scales Industrial Weighing Scale
Winlit offers a wide variety of heavy duty scales, from industrial floor scales to mobile and heavy duty weighing scales for any industrial environment. Our heavy duty scale offering is known for industry leading accuracy and reliability, in your tough industrial environments.
Factors To Consider Before Buying Industrial Floor Scales:
Platform size – We recommend that you buy floor scales by Quality Scales Unlimited that are easy to maneuver. Choose the size that suits for requirements, however, they should be of a size where you can load and unload easily.
Platform capacity – We offer scales that are capable of handling standard capacities at 2500 lb, 10,000 lb, 20,000 lb, but larger scales are also available.
Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request
super load bearing,easy to install,stable and firm,electronic display,weighing accurately can reach your request.
Specification:
1. Weighing Capacity: 10000KG
2. With OIML, NTEP and CE approved KELI load cells.

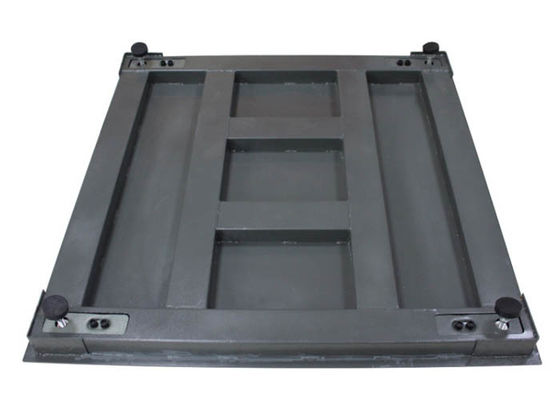

3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
| Dimension | capacity | spectfication |
|---|---|---|
| 0.8*0.8m | 1ton 2ton 3ton | A)Single deck |
| 1.0*1.0m | 1ton 2ton 3ton | B)Carbon steel |
| 1.2*1.2m | 1ton 2ton 3ton | C)U-shape beams by moulds |
| 1.2*1.5m | 1ton 2ton 3ton | D)With load cells |
| 1.5*1.5m | 1ton 2ton 3ton | E)Indicator optional |
| 1.5*2.0m | 1ton 2ton 3ton 5ton | F)With junction box |
| 2.0*2.0m | 1ton 2ton 3ton 5ton | G)5M signal cable |
| 2.0*3.0m | 1ton 2ton 3ton 5ton 10ton | H)Ramps optional |
Features and Advantages
1. Available in a range of standard sizes and capacities.
2. Can be made to any custom size,shape or capacity to meet unique needs.
3. Built for strength,reliability and repeatable accuracy.
4. Carbon steel and baking epoxy paint/
5. Standard Capacity:100Kg-10000Kg.
6. Checkered plate to skid proof.
7. High precision shear beam load cells with adjustable feet and locationg plates.
8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.
9. Digital out-stand indicator (LCD / LED) with high accuaracy.
10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.
11. Ideal for daily,constant usage and heavy duty applications.
Quality assurance :
Weighing platform is designed according to mechanics principle.
100% inspection according to National standard inspecting method to make sure quality assurance.
Powder coated surface is more smooth and durable.
IP65 washable stainless steel plate,suitable for the food industry.
High precision:
High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.
* 1 & * 2 : Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.
Factory Workshop
1. Amin the universal pin at the screw hole
2. Turn up,adjust the height
3. Turn off the white screw and pull out the cable
4. Lock the slot
5. Plug the connector into the intrument
6. The installation is complete,you can see
Company Profile
Our factory is located in Changzhou,Jiangsu Province,which is one of the most developed areas in China.
As one of the leading manufacturers in weighing equipment field in China.Winlit has the big weighing equipment line,including
electronic truck scale ,portable axle scale ,floor scale ,pallet scale ,etc.
Winlit is explaining the "Professional Design, Advanced Technology, Reliable Quality "by the perfect products,applications and services .
Certifications
We have ISO9001 quality management system
OIML and CE certificates for accessories such as load cell and indicator.
FAQ
Q:Is it convenient for truck weighbridge scale transportation?
A:Whole set divides to small sections,easy for shipping and installation.
Q:Do you offer installation in our country?
A:We have agents in some countries.Please confirm with us if it is available in your country.
Q:Is your price the lowest in the market?
A:It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales. Q:Is your company factory?
A:Yes,we are manufacturer.Welcome your visit anytime.
Q:What is your payment way?
A:Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
