Heavy Duty Floor Scales

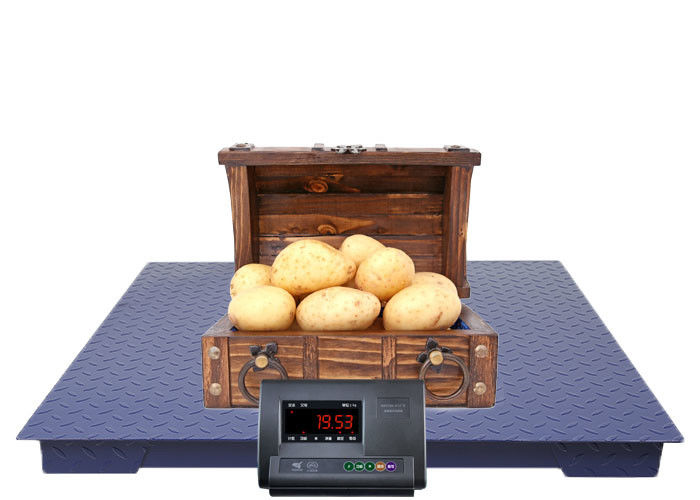

Industrial Heavy Duty Platform Single Deck Floor Weighing Scale 1000kg-5000kg

Industrial Heavy Duty Platform Single Deck Floor Weighing Scale 1000kg-5000kg

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE, ISO
Model Number: HR-FS03
Detail Information
Place of Origin:
Brand Name:
Model Number:
Weighing Capacity:
Plate Thickness:
4mm 5mm 6mm 8mm
Load Cell:
Keli /zemic
Max Capacity:
Accuracy Class:
1x1m, 1.2x1.2m, 1.5x1.5m Or Customized
Signal Cable:
5m Or Longer
High Light:

High Light

High Light:

Single Deck Floor Weighing Scale 1000kg


8mm Platform Floor Weighing Scale


Zemic Heavy Duty Floor Scales

Trading Information
Minimum Order Quantity:
Packaging Details:
carton box
Delivery Time:
8-10 days
Payment Terms:
Supply Ability:
50 sets per week
Product Description

Hener Factory 1000kg-5000kg Industrial Heavy Duty Platform Single Deck Floor Weighing Scale


HENER floor scales is an CE approved, legal for trade, professional grade floor scale. This highly accurate, heavy duty scale is capable of handling up to 5,000lb loads within 1lb accuracy.


These floor scales are industrial grade platform scales at an affordable price. They can be used in warehousing, industrial logistics, general weighing, etc.


With quick connect and factory calibration that allow the scale to operate immediately with quick setup. Adjustable leveling feet for uneven surface


Platform capacity – We offer scales that are capable of handling standard capacities at 2500 lb, 10,000 lb, 20,000 lb, but larger scales are also available.

latform size – We recommend that you buy floor scales by HENER that are easy to maneuver. Choose the size that suits for requirements, however, they should be of a size where you can load and unload easily.

Accuracy – Our floor scale have load cells made of stainless steel alloys that give you highly accurate results while sustaining pressure. You won’t have to worry about erroneous readings during measuring loads of different weights.

Durability – The floor scales we offer are made with high-quality materials that assure durability as well as longevity. They can be used in rugged conditions. Let us know the kind of environment the floor scales would be exposed to and we will suggest the best scales for the required purpose.

Flexibility – Some of our floor scales have flexible foot pads that allow the machine to work efficiently even on uneven surfaces. The adjustable foot pads make it easy to operate and convenient to use.


Features and Advantages

-Battery Powered – For areas without a power source or where wires may impede ongoing work, you can opt for models with built-in rechargeable batteries.
-Mechanical – If you require a 1000 lb or 500 kg capacity scale that operates without a power source, you could use an economical all-mechanical beam scale.
-Additional Equipment – Optional equipment like mounting brackets, ramps and clamshells can be added to improve usability.
-Mobility Kits – If you already have a floor scale, but need a mobility feature, we may be able to source a portability kit designed to work with your model.

Heavy industrial design
Diamond texture steel platform
Height: 4”
Capacity/Accuracy : 5000 x 0.5 lbs.
Four load cells design for accurate measurements
15’ load cell cable
Top load design
Four adjustable swivel steel feet
ABS NEMA 4X junction box with excitation trim board
Easy to read Indicator with serial output,
LB/KG convertible.
Auto zero tracking.

Regarding all deliveries, consignee/customer will be responsible for all additional accessorial fees including, but not limited to: Limited Access, Remote Access, Residential, Farm, Delivery Appointment, Lift Gate, White Glove Service, Re-consignment, Re-delivery and Inside Delivery.

Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A)Single deck
1.0*1.0m 1ton 2ton 3ton B)Carbon steel
1.2*1.2m 1ton 2ton 3ton C)U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D)With load cells
1.5*1.5m 1ton 2ton 3ton E)Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F)With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G)5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H)Ramps optional


Factory Workshop:

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see


Detailed Explanations:

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.

Industrial Heavy Duty Platform Single Deck Floor Weighing Scale 1000kg-5000kg 0

Company profile:
Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.

Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
