| Place of Origin: | China |
| Brand Name: | Winlit |
| Certification: | CE |
| Model Number: | HR-TS |
High Precision Indoor Truck Scale Weigh Bridge Scale Heavy Duty Truck Weighbridge
Visit our truck scale information for in-depth details on the features and benefits of Avery Weigh-Tronix truck scales, or see how we've helped other businesses like yours in our selection of truck scale case studies.Our versatile truck scales can be paired with a range of indicators, software and accessories for a complete weighing and data management solution.
Our truck scales are available in a wide range of standard and customized configurations to suit your application needs. We offer truck scales in standard sizes between 3m to 3.8m wide that suit most customers. Where standard doesn't suit, we can produce almost any length combination thanks to our modular design, with either steel or concrete driving surfaces, and can be either above ground or pit mounted.
The Superiority of our truck scale :
1. We use the bridge design technology on the platform
2. Simple structure, automated processing by machine
3. Uniform force, deformation is small
4. Beautiful appearance
5. Product configuration flexibility, good interchangeability
5. Mass production, product quality and stability
7. Selection of standardized
Product name | Digital electronic truck scale | Features: * Modular panels made of U or I steel beams with thickness 6/8mm * Rolling surface composed of steel plate * Skidproof design for surface platform * Easy access to load cells and junction box through removable access hatches on the surface platform * Finishing in industrial epoxy paint color * Suitable for an intensive usage |
Weighing range | 10t ~150t | |
Platform length | 6m~30m | |
Platform width | 3m, 3.2m,3.4m,3.5m,4m,4.5m, or customized | |
Platform thickness | 8mm~20mm | |
Protection class | IP68 | |
Accuracy class | OIML (C3) | |
Overload | 150%F.S | |
Working temperature | -10~40ºC(indicator), -30~75ºC(load cell) | |
Power supply | 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz | |
Delivery time | 15 days after receipt of deposit |
Truck Scale systems provide a solution to weigh trucks, trailers or any other type of wheeled vehicle, quickly and accurately.
the width of the truck scale can be 3 meters ,3.2meters ,3.4meters, but 3 meters is the most normal width.
For the length of truck scale ,we have 6, 8 ,10,16,18 ,20 and so on,you know the truck scale length depends on the length of truck or trailer you want to weigh.
Accessories parts (including optional parts):
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable
Detailed information:
| Truck Scale Technical Specification | |
| Width | 3m, 3.2m |
| Length | 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m |
| Power supply | 110V±10%；220V±10% AC or DC,50 or 60Hz |
| Accurancy class | OIML(III) |
| Capacity range | 120 TON |
| Safe overload | 150% |
| Material | Q235steel |
| Thickness of plate | 8~20mm |
| Structure | 6mm U-shaped beams |
| Painting | Anti rust and anti corrsion |
| Quality system | ISO9001:2020 |
| Certificate | CE |
| Packing details | In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons. |
Product Types:

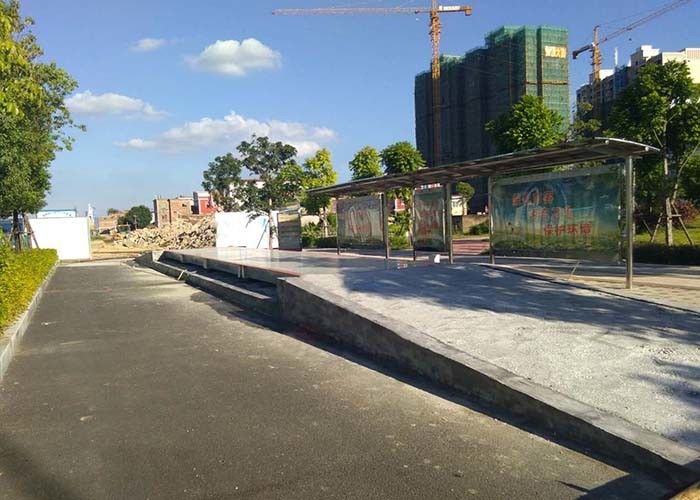

| Pit free structure | Shallow foundation pit structure |
| No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off | Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level |
New design :
FAQ:
Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
With OIML, CE, NTEP CERTIFICATIONS
