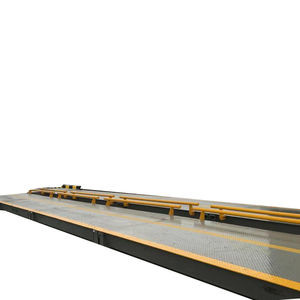

Powder Coated Weighbridge Measuring Truck Scale Customized Dimension

Category:
Weighbridge Scales
Price:
Price negotiable
Payment Method:
T/T
Specifications
Thickness Of U Beam:
4/5/6mm
Surface:
Powder Coated
Pit Tye:
Pit/Pitless
Dimension:
Customized
Ramp:
3x4m
Load Cell:
Keli
Type:
Analog/Digital
Foundation:
Shallow / Non Foundation
High Light:

Powder coated Measuring Truck Scale

,

Customized Dimension Measuring Truck Scale

,

Powder coated Weighbridge Truck Scale

Introduction

10~100ton Digital Heavy Duty Weighbridge Weight Measuring Equipment Truck Scale​


  • Fully assembled, 100% welded construction
    - extra strength and no weak spots
  • Industry leading weight sensors
    - quick accurate weigh readings
  • Cost effective ownership
    - lasts longer than competitor truck scales and less downtime

Truck Scale systems provide a solution to weigh trucks, trailers or any other type of wheeled vehicle, quickly and accurately.
the width of the truck scale can be 3 meters ,3.2meters ,3.4meters, but 3 meters is the most normal width.
For the length of truck scale ,we have 6, 8 ,10,16,18 ,20 and so on,you know the truck scale length depends on the length of truck or trailer you want to weigh.

The Superiority of our truck scale :
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically


winlit Truck Scales represents many of the world's leading manufactures of scales and weighing systems. We supply accurate, durable and dependable products for world wide customers
Choosing the right equipment for your application can be difficult. Our staff, with combined industry experience of well over 20 years is at your service.

Truck scales are used in industries that manufacture or move bulk items, such as in mines or quarries, garbage dumps / recycling centers, bulk liquid and powder movement, household goods, and electrical equipment.

Truck Scale systems provide a solution to weigh trucks, trailers or any other type of wheeled vehicle, quickly and accurately.
the width of the truck scale can be 3 meters ,3.2meters ,3.4meters, but 3 meters is the most normal width.
For the length of truck scale ,we have 6, 8 ,10,16,18 ,20 and so on,you know the truck scale length depends on the length of truck or trailer you want to weigh.

How does a weighbridge work?

Five main components must work together for a truck scale to function properly.
1. Foundation: permanent installations use a concrete foundation.
2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.
3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.
4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.
5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.

Accessories parts (including optional parts):
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable

Detailed information:


Truck Scale Technical Specification
Width 3m, 3.2m
Length 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 120 TON
Safe overload 150%
Material Q235steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.



Product Types:


Pit free structure Shallow foundation pit structure
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level


Shipment:
Powder Coated Weighbridge Measuring Truck Scale Customized Dimension
FAQ:

Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.


Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.


Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.


Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.


Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.

With OIML, CE, NTEP CERTIFICATIONS
