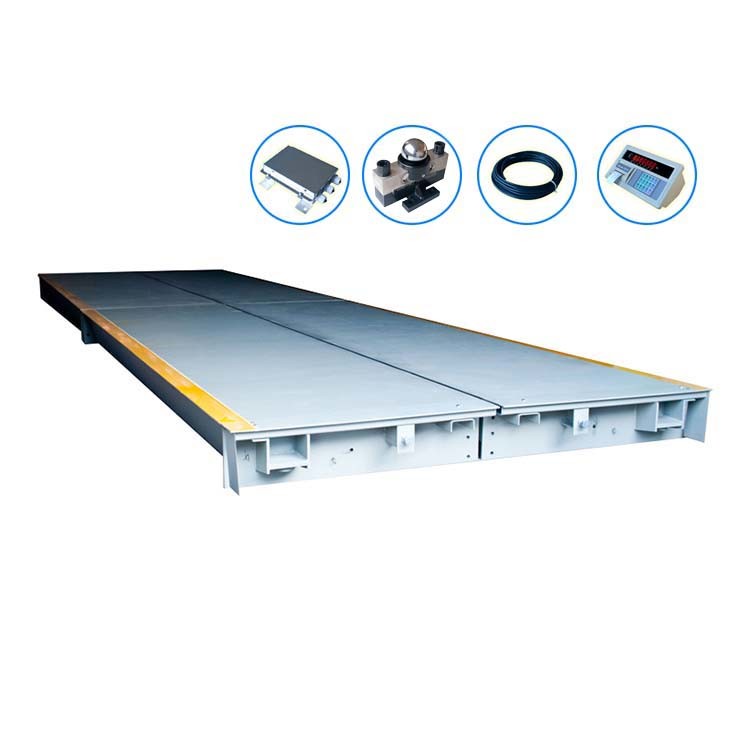

3*16m 60T Capacity 8PCS Load Cells Truck Scale Heavy Duty Weighbridge
Heavy duty electronic truck is a new generation truck scale, adopts all truck scale advantage.It is gradually developed by our own technology and launched after long period of overloading tests.
The main beam is high-strength U-beam structure.The weighing platform panel is made of Q-235 flat steel,joined to a closed box-type structure,which is strong and reliable.
The welding process adopts unique fixture,precise space orientation and measurement technology.
How does a weighbridge work?
Five main components must work together for a truck scale to function properly.
1. Foundation: permanent installations use a concrete foundation.
2. Weighbridge, also known as the scale deck: this is the structure that creates the driving surface for the trucks. The weighbridge is typically composed of modular sections that are placed together to span the desired length.
3. Load cells: these are the sensors that measure the weight on the scale. In most modern scales the weighbridge is supported by the load cells themselves.
4. Terminal: sometimes referred to as an indicator, the terminal is the control panel for the scale. It displays the weight value to the operator, and often serves as the connection point for other scale peripherals.
5. Cables: the signal from the load cells must be transmitted to the terminal. In most cases this is done with cables.
Detailed information:
Truck Scale Technical Specification | |
Width | 3m, 3.2m |
Length | 6m,8m,9m,10m,12m,14m,16m,18m,20m,22m |
Power supply | 110V±10%;220V±10% AC or DC,50 or 60Hz |
Accurancy class | OIML(III) |
Capacity range | 120 TON |
Safe overload | 150% |
Material | Q235steel |
Thickness of plate | 8~20mm |
Structure | 6mm U-shaped beams |
Painting | Anti rust and anti corrsion |
Quality system | ISO9001:2020 |
Certificate | CE |
Packing details | In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons. |
The Superiority of our truck scale :
* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically
Accessories parts (including optional parts):
* 1. Optional in platform size, Max. Cap.
* 2. Optional in other brand's load cells, indicator.
* 3. Optional RS232 interface
* 4. Optional ramps or rails.
* 5. Optional big screen.
* 6. Optional extra printer
* 7. Optional software
* 8. Optional computer
* 9. Optional double shielded cable
Product Types:
Pit free structure | Shallow foundation pit structure |
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off | Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level |
FAQ:
Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
With OIML, CE, NTEP CERTIFICATIONS
