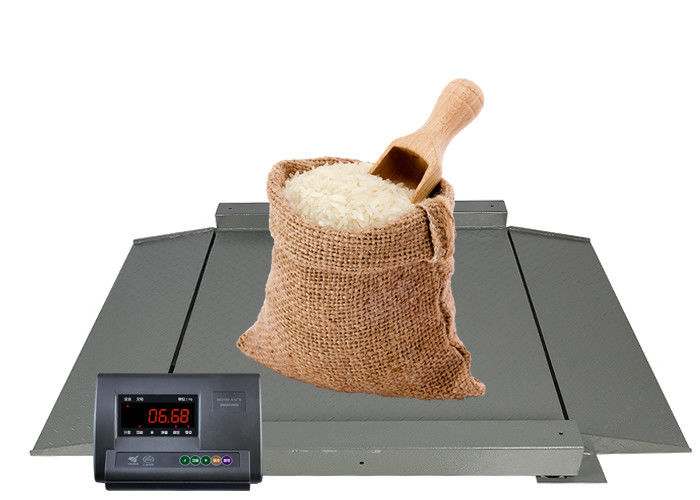

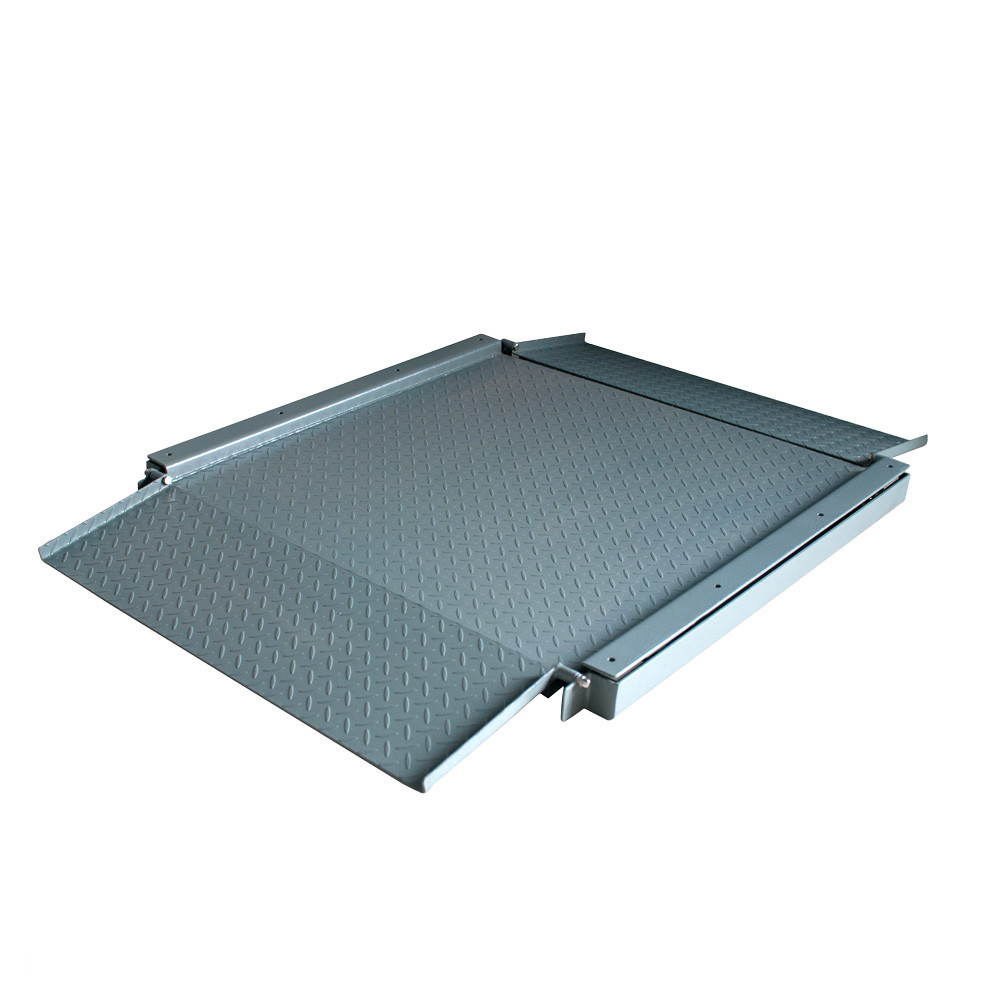

36" X 36" Mechanical Floor Scale , 2500 LB Low Profile Pallet Scale

Category:
Weighbridge Scales
Price:
Negotiable
Payment Method:
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Specifications
Features:
High Precision And Stable Performance, Accumulate, Zero, Peel
Product Name:
Industrial Floor Scale
Material:
Q235B Carbon Steel
Shipment:
By Sea
Connection:
5m Signal Cable With Standard Plug
Power Supply:
110V-240V,50-60HZ
Plug:
OEM
Floor Scale Height:
Low Profile 12cm
High Light:

2500 LB Mechanical Floor Scale

,

36" X 36" Mechanical Floor Scale

,

2500 LB low profile pallet scale

Introduction

Industrial Floor Scales, 36" x 36", 2500LB/0.5LB, Hener Focus on Industry for 20 Years



The high performance floor scale is the industry leader for durable and accurate weighments. Available in 1,000 to 10,000 pound.
The stainless steel floor scale is designed specifically for Legal for Trade applications requiring the added corrosion protection of stainless steel.
When flexibility is required for weighing large items such as barrels and drum pallets, the low profile design and optional hinged access ramps enable effortless loading and unloading.

Part of floor scale
1. Adjustable foot:turn up,adjust height
2. Tread plate:carbon steel plate or stainless plate is optional
3. indicator:with print or without print as your rquest
4. High precision sensor:the different brand,different price and different quality is optional
5. Signal line:5m,8m as your request
6. Anti-mouse board:as your request

The reverse structure is clear at a glance, and multiple beams ensure the stability of the weighing platform.
Super Load Bearing,Easy to Instal,Stable and Firm,Electronic Display,Weighing Accurately can reach your request.

Specification:
1. Weighing Capacity: 5000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate
5. With YAOHUA A12E indicator.
6. With junction box, and 5m cable.
7. Weight:42kg
8. Accuracy:0.5kg
Dimension capacity spectfication
0.8*0.8m 1ton 2ton 3ton A)Single deck
1.0*1.0m 1ton 2ton 3ton B)Carbon steel
1.2*1.2m 1ton 2ton 3ton C)U-shape beams by moulds
1.2*1.5m 1ton 2ton 3ton D)With load cells
1.5*1.5m 1ton 2ton 3ton E)Indicator optional
1.5*2.0m 1ton 2ton 3ton 5ton F)With junction box
2.0*2.0m 1ton 2ton 3ton 5ton G)5M signal cable
2.0*3.0m 1ton 2ton 3ton 5ton 10ton H)Ramps optional
Features and Advantages
1. Available in a range of standard sizes and capacities.
2. Can be made to any custom size,shape or capacity to meet unique needs.
3. Built for strength,reliability and repeatable accuracy.

4. Carbon steel and baking epoxy paint/

5. Standard Capacity:100Kg-10000Kg.

6. Checkered plate to skid proof.

7. High precision shear beam load cells with adjustable feet and locationg plates.

8. Threaded eyebolt holes on top plate of each corner for easy adjusting feet height.

9. Digital out-stand indicator (LCD / LED) with high accuaracy.

10. All purposed basic weighing functions,date and time,animal weighing,counting,and accumulation etc.

11. Ideal for daily,constant usage and heavy duty applications.



High Precision

1. High precision alloy steel load cell.With Keli*1 or Zemic*2 SQB load cells optional.

2. Keli or Zemic is our accessories supplier, and Keli or Zemic commodities are owned by the actual trademark holder.



Factory Workshop

1. Amin the universal pin at the screw hole

2. Turn up,adjust the height

3. Turn off the white screw and pull out the cable

4. Lock the slot

5. Plug the connector into the intrument

6. The installation is complete,you can see

36" X 36" Mechanical Floor Scale ,  2500 LB Low Profile Pallet Scale36" X 36" Mechanical Floor Scale ,  2500 LB Low Profile Pallet Scale



Detailed Explanations

1. Thickened scale foot to ensure the stability of the scale body.

2. Enveloping angle structure makes the structure more stable.

3. Automatic protection welding machine,homogeneous precise welding to make the surface smoothly and flatness.

36" X 36" Mechanical Floor Scale ,  2500 LB Low Profile Pallet Scale

Company profile
Winlit is one of the leading manufacturers in Weighing Equipment field in China.Winlit has the big Weighing indicators have attained CE certification.Winlit promise that we make the quality excellence,be sincere to customer,operate the business underpinnerd,innovate
actively,import contonuously,co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.



FAQ
Q: Is it convenient for truck weighbridge scale transportation?

A: Whole set divides to small sections,easy for shipping and installation.
Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.
Q: Is your price the lowest in the market?

A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.
Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.
Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
