OEM 150 Ton Q235 Steel Truck Scale Weighbridge

OEM 150 Ton Q235 Steel Truck Scale Weighbridge

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: HR-TS
Detail Information
Place of Origin:
Brand Name:
Model Number:
Carbon Steel
3 Years
Indicator Screen:
Load Cell:
Weight Capacity:
150 Ton
Pit Type:
Pitless Or Pit
High Light:

High Light

High Light:

OEM Truck Scale Weighbridge


Q235 Steel Truck Scale Weighbridge


150 Ton Lorry Weighbridge

Trading Information
Minimum Order Quantity:
Price negotiable
Packaging Details:
nude and wooden case
Delivery Time:
12-20 days
Payment Terms:
Supply Ability:
30 sets per month
Product Description

OEM Dimension Q235 Carbon Steel Truck Scale With High Accuracy And Good Quality


Replacing a truck scale is an expensive solution that might not be necessary if your load cells are failing. When a scale, especially a relatively new one, experiences frequent downtime and repairs, the problem can often be traced to some part of the load-cell system (load cells, cables, connectors or junction boxes). Upgrading these components with a Hener load-cell system is a cost effective way to turn a troublesome scale into one that performs better than new.


Detailed information:


Truck Scale Technical Specification
Width 3m, 3.2m, 3.4m
Length 6m,8m, 10m,12m,14m,16m,18m,20m,22m
Power supply 110V±10%;220V±10% AC or DC,50 or 60Hz
Accurancy class OIML(III)
Capacity range 150 TON
Safe overload 150%
Material Q235 steel
Thickness of plate 8~20mm
Structure 6mm U-shaped beams
Painting Anti rust and anti corrsion
Quality system ISO9001:2020
Certificate CE
Packing details In 20"or 40" container, modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.


How accurate is a weighbridge?


The accuracy of a weighbridge easily can be taken for granted. But, if you buy or sell goods with the use of a truck scale, accuracy is critical to your transactions. The accuracy of the scale can influence profit margins, inventory levels and quality management. The size of the legal accuracy tolerance for your scale depends on your location and whether your region recognises NMI, NIST/NTEP, OIML or other standards. The tolerance is a function of the scale's capacity being utilized and the size of the scale's weighing increment. For example, according to NTEP regulations, a truck scale with 200,000-pound capacity weighing 70,000- to 80,000-pound trucks can have 160 pounds of error (positive or negative).

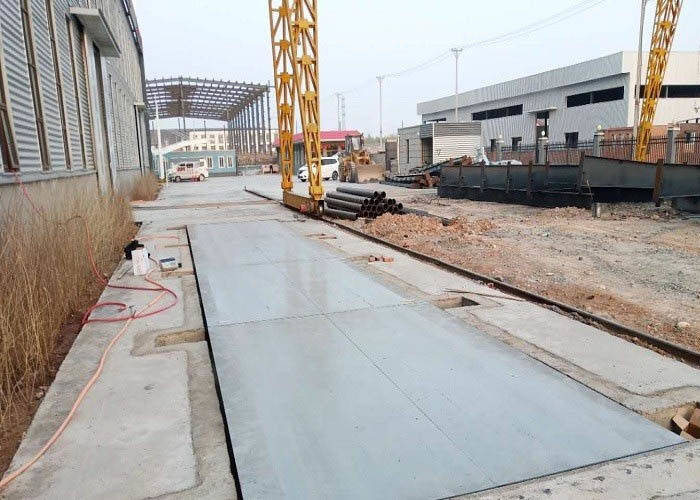

OEM 150 Ton Q235 Steel Truck Scale Weighbridge 0

Product Types:


OEM 150 Ton Q235 Steel Truck Scale Weighbridge 1

Pit free structure Shallow foundation pit structure
No foundation pit is installed on the ground plane, the surface of the ground pounds above the ground, need to do both sides of the slope, easy to get on, off Shallow foundation pit is installed in the ground, after the surface of the ground pounds and the ground level


The Superiority of our truck scale :

* Can be matched with various indicators
* Digital display gross weight, net weight, tare
* Dynamic, under load and overload, etc state display
* Digital filtering, clear tare automatically
* Subtract tare and clear tare automatically
* Keyboard set/calibration
* Vehicle No., tare storage, subitem accumulation, total accumulation
* Data output/print automatically





Q: Is it convenient for truck weighbridge scale transportation?
A: Whole set divides to small sections,easy for shipping and installation.


Q: Do you offer installation in our country?
A: We have agents in some countries.Please confirm with us if it is available in your country.


Q: Is your price the lowest in the market?
A: It is never difficult to make lowest price in China, but you get what you pay for.We don't aim on lowest but surely the most cost-effective scales.


Q: Is your company factory?
A: Yes,we are manufacturer.Welcome your visit anytime.


Q: What is your payment way?
A: Generally we go with TT payment.LC is also acceptable.For other payment,we can discuss.
