Truck Axle Scale
>

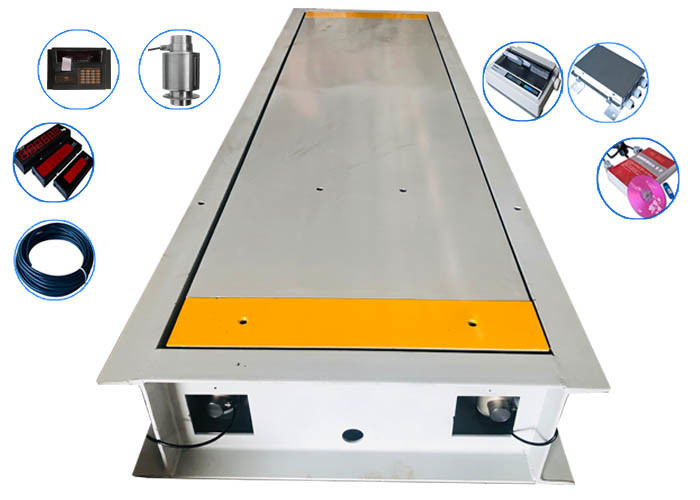

Static Single 3.2*0.8m Axle Weights For Trucks

Static Single 3.2*0.8m Axle Weights For Trucks

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: HR-TS
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
HR-TS
Material:
Carbon Steel
Name:
Fixed Axle Load Scale
Certificate:
CE
Display:
LCD(LED )Display
Capacity:
50t
Color:
Customized Color
Warranty:
1 Year
Function:
Weigh Function
Highlight:

High Light

Highlight:

Single Truck Scale Fixed Axle

,

Static Truck Scale Fixed Axle

,

Single mobile truck weigh scales

Trading Information
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
nude and wooden case
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
50sets per month
Product Description

Truck Weighing Static Weigher Single Truck Scale Fixed Axle Loading In-Motion Vehicle Scales



Portable Axle Load Scale is constructed in a subframe that totally eliminates the need for a pier or slab foundation. A flat, unyielding surface such as asphalt or concrete is all that ’s required to install the complete unit. By eliminating the foundation,both installation and relocation of this scale are a snap,requiring minimal time,effort and money. If change in process, traffic flow, or location occurs, the Fairbanks Portable Axle Load Scale offers the ultimate in weighing flexibility.



Features:

1. platform size:3/3.2/3.5/4m etc × 0.9/2.0/2.2/2.5/3.0m

2. weighing load cell :equipped with 4 column load cells

3. specified range:20,30,40,50,60,80,100t

4. static accuracy:OIML 3,d=10,20,50kg

5. dynamic accuracy:axle weight F class

6. weighing forms:gross weight be equal with

7. accumulation data of fore-and-aft wheel,the

8. whole truck'weight can reach 30~150t

9. power:220v/50Hz(equipped with rechargeable batteries when electricity cut off)

10. print out weighing result by computer.

11. need puting in the foundation,fixed weighing



Specification:



Model FIXED AXLE LOAD SCALE
Capacity  20t 30t 50t 80t 100t
plate  dimension 3.2*0.8m  3.2*2.2m
Precision OIML 3,d=10,20,50kg
Load Cell structure 4 pcs of column load cells
Cable Length 20m, 30m, but longer cable is optional.
Division  10 kg, 20 kg, 50 kg
Inspecting Speed ≤10km/h on average
Work Temperature -45℃~+70℃
Indicator YaoHua-DM1   YaoHua-DM1P

The axle laod scale also can connect the big screen ,computer and external printer .



Application:

It contributes huge work in transportation

Static  Single  3.2*0.8m Axle Weights  For Trucks 0



Company Profile:


Our factory is located in Changzhou,Jiangsu Province,which is one of the most developed areas in China.
As one of the leading manufacturers in weighing equipment field in China.Winlit has the big weighing equipment line,including
electronic truck scale ,portable axle scale ,floor scale ,pallet scale ,etc.
Winlit is explaining the "Professional Design, Advanced Technology, Reliable Quality "by the perfect products,applications and services .
