800*430 IP68 Truck Axle Scale Stainless Steel Load Cells

800*430 IP68 Truck Axle Scale Stainless Steel Load Cells

Product Details:
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: CH-A
Detail Information
Place of Origin:
China
Brand Name:
Winlit
Certification:
CE
Model Number:
CH-A
Product Name:
Weight Scale
Min. Capacity:
10 Ton
Function:
Weight Function
Material:
ABS + Stainless Steel
Display:
LCD(LED )Display
Color:
Silver/orange
Size:
As Request
Warranty:
1 Year
High Light:

High Light

High Light:

800*430 IP68 Truck Axle Scale

,

IP68 Truck Axle Scale 800*430

,

800*430 mobile truck scales

Trading Information
Minimum Order Quantity:
1 set (=2 pieces)
Price:
Price negotiable
Packaging Details:
carton box and plastic box
Delivery Time:
7-12 work days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
50 sets per week
Product Description

700*430*30mm 30 ton Alloy steel Waterproof Keyboard Portable Axle Weighbridge IP68 Stainless Steel Load Cells



Axles scales come in many different sizes and maximum capacities depending on their design and use.
There are two main types of axle scales; portable and fixed. Portable axle scales are much more cost-effective in addition to the added benefit of moving the scale anywhere at any time. While axle scales are most popular in the trucking industry, they are also used in mining and farming industries.



Features:



1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.



Specifications:



Model

PAW-A

Max Capacity (Single Axle)

5t

10t

15t

20t

30t

Pad dimension

700*430*30 (mm); 800*430*30 (mm)

Ramp dimension

700*350 (mm); 800*350 (mm)

Precision

Static ± 0.05%, Dynastic ± 2%

Load Cell structure

Pad is load cell, strain gauge inside

Cable Length

One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.

Division

0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg

Inspecting Speed

≤10km/h on average

Work Temperature

-45℃~+70℃



800*430 IP68 Truck Axle Scale Stainless Steel Load Cells 0

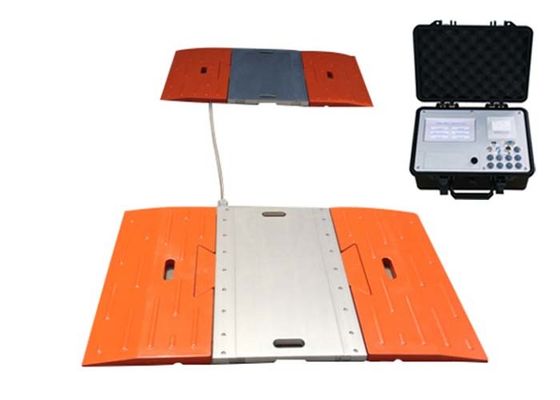

Weigh pads

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Anti-rust, insterting-in and pulling-out seamless connection, waterproof.



800*430 IP68 Truck Axle Scale Stainless Steel Load Cells 1

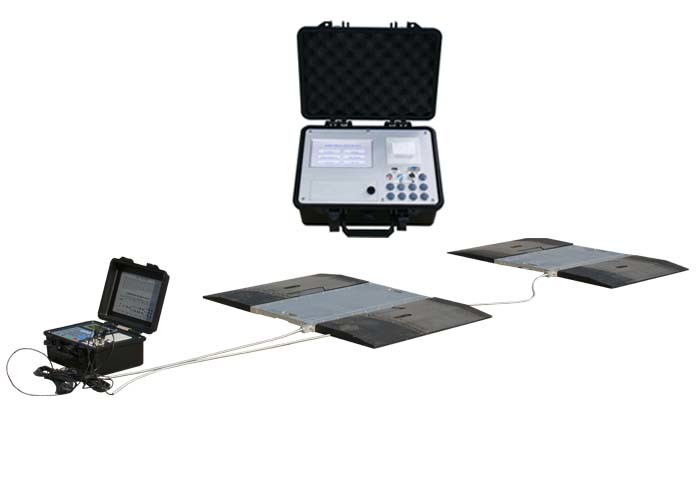

Box indicator

1. Support USB, SD card,
2. Support dynamic and static,
3. Support alarm output,
4. Can be applied to unattended weighing



Application:

800*430 IP68 Truck Axle Scale Stainless Steel Load Cells 2



FAQ:

1. who are we?
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(65.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Mid East(1.00%),Oceania(1.00%),Africa(1.00%),North America(1.00%). There are total about 11-50 people in our office.



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3. what can you buy from us?
Truck Scale,Pallet Scale,Platform Floor Scale,Bench Scale,Crane Scale



4. why should you buy from us not from other suppliers?
As one of the leading manufacturers in Weighing Equipment field in China. Hener has the big Weighing Equipment products line, including electronic crane scales, truck scale, rail scale, bench scale, floor scale, weighing indicators, portable axle scale



5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
