800*430 Portable Axle Weigh Scales , 50T Wireless Truck Scales

Category:
Electronic Weight Scales
Price:
Price negotiable
Payment Method:
L/C, T/T, Western Union, MoneyGram
Specifications
Product Name:
Weight Scale
Material:
ABS + Stainless Steel
Display:
LCD(LED )Display
Power:
AC
Structure:
U-shaped
Warranty:
1 Year
Cable:
30m
Load Cell:
Keli/zemic
High Light:

50T 800*430 Portable Axle Weigh Scales

,

800*430 Portable Axle Weigh Scales

,

50t Wireless Truck Scales

Introduction

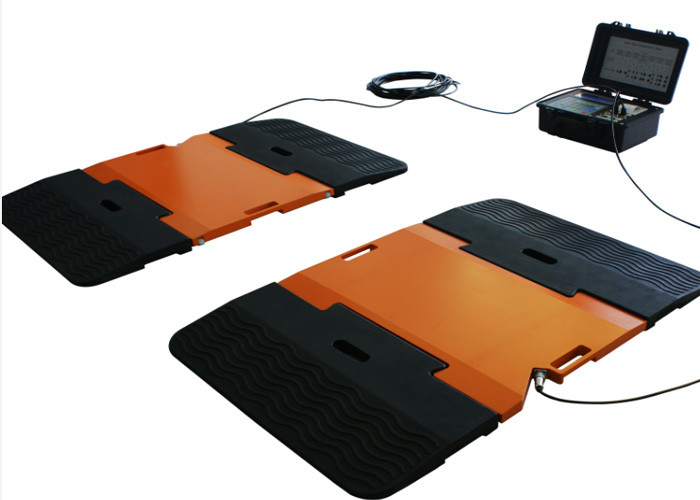

800*430*30mm 50Ton Alloy Steel Portable Weighbridge Scales To Weigh Trucks Axle Scale Weighing System wireless scale



Our axle scales are a low-cost efficient way to quickly check truck axle weights to help prevent overloads and avoid costly fines. We use the highest quality parts and materials when building our portable truck axle scale systems. We also go above the competition by customizing all of our truck axle scales with weather protection features to ensure all connections are protected from harsh environments of outside use. Whether you plan to use our truck axle scales indoors or out, have confidence in knowing that our scales are built by certified scale technicians ensuring years of use without product failure.



Features:



1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.



Specifications:



Model

PAW-A

Max Capacity (Single Axle)

5t

10t

15t

20t

30t

Pad dimension

700*430*30 (mm); 800*430*30 (mm)

Ramp dimension

700*350 (mm); 800*350 (mm)

Precision

Static ± 0.05%, Dynastic ± 2%

Load Cell structure

Pad is load cell, strain gauge inside

Cable Length

One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.

Division

0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg

Inspecting Speed

≤10km/h on average

Work Temperature

-45℃~+70℃



800*430 Portable Axle Weigh Scales , 50T Wireless Truck Scales

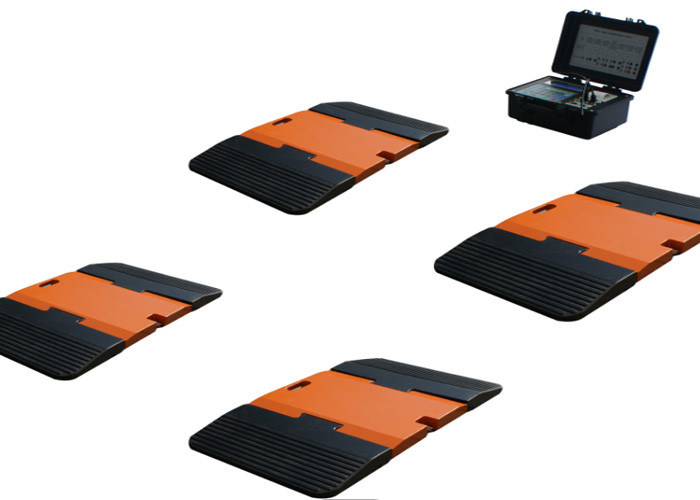

Weigh pads

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Anti-rust, insterting-in and pulling-out seamless connection, waterproof.



800*430 Portable Axle Weigh Scales , 50T Wireless Truck Scales

Box indicator

1. Support USB, SD card,
2. Support dynamic and static,
3. Support alarm output,
4. Can be applied to unattended weighing



Application:

800*430 Portable Axle Weigh Scales , 50T Wireless Truck Scales
