Wireless 50T lCD Axle Weight Scale Alloy Steel

Category:
Electronic Weight Scales
Price:
Price negotiable
Payment Method:
L/C, T/T, Western Union, MoneyGram
Specifications
Indicator:
As Request
Function:
Weight Function
Material:
ABS + Stainless Steel
Display:
LCD(LED )Display
Color:
Silver/orange
Other Parts:
OEM
Warranty:
1 Year
Scale Type:
Axle Load Scale
High Light:

LCD Axle Weight Scale

,

Wireless Axle Weight Scale

,

LCD portable axle scales

Introduction

700*430*30mm 50t Alloy Steel High Quality Wireless Electronic Weighbridge Small Portable Truck Axle Scale



We offers a full line of portable vehicle weighers for both static and dynamic applications. The wheel Load Weigher is an electronic, low profile scale providing easy access for static vehicle weighing. The DAW 300 Weigh-in-Motion system is a completely portable Weigh-In-Motion (WIM) screening system designed for mobile enforcement operations.



Features:



1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.



Specifications:



Model

PAW-A

Max Capacity (Single Axle)

5t

10t

15t

20t

30t

Pad dimension

700*430*30 (mm); 800*430*30 (mm)

Ramp dimension

700*350 (mm); 800*350 (mm)

Precision

Static ± 0.05%, Dynastic ± 2%

Load Cell structure

Pad is load cell, strain gauge inside

Cable Length

One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.

Division

0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg

Inspecting Speed

≤10km/h on average

Work Temperature

-45℃~+70℃



Weigh pads

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Anti-rust, insterting-in and pulling-out seamless connection, waterproof.



Box indicator

1. Support USB, SD card,
2. Support dynamic and static,
3. Support alarm output,
4. Can be applied to unattended weighing



Application:

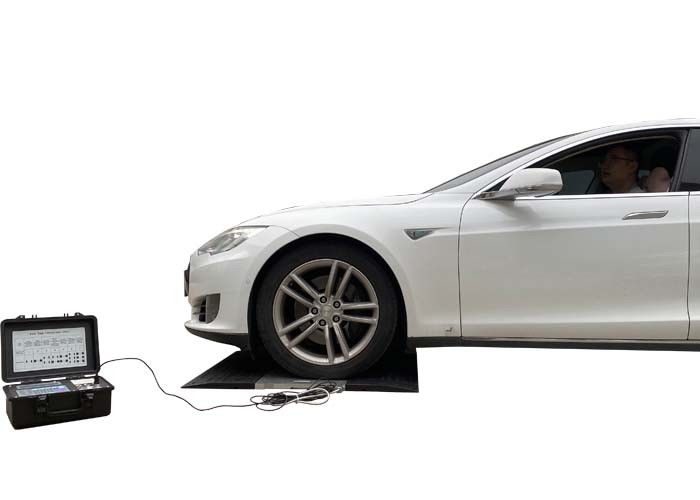

Wireless 50T lCD  Axle Weight Scale  Alloy Steel



Company profile:

Winlit has the big Weighing indicators have attained CE certification. Winlit promise that we make the quality excellence,be sincere to customer, operate the business under pinnerd, innovate actively,import continuously, co-operate and share the profit make the management sustainable,be responsible to sociality,make customer satisfied,and protect the environment for a clean earth.





FAQ:

1. who are we?
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(65.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Mid East(1.00%),Oceania(1.00%),Africa(1.00%),North America(1.00%). There are total about 11-50 people in our office.



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3. what can you buy from us?
Truck Scale,Pallet Scale,Platform Floor Scale,Bench Scale,Crane Scale



4. why should you buy from us not from other suppliers?
As one of the leading manufacturers in Weighing Equipment field in China. Hener has the big Weighing Equipment products line, including electronic crane scales, truck scale, rail scale, bench scale, floor scale, weighing indicators, portable axle scale



5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
