LCD Electronic Truck Axle Scale , 50T Vehicle Axle Weighing Scales

1 set (=2 pieces)
MOQ
Price negotiable
Price
LCD Electronic Truck Axle Scale , 50T Vehicle Axle Weighing Scales
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Weight Scale
Capacity: 50 Ton
Application: Weigh Cargos
Material: ABS + Stainless Steel
Display: LCD(LED )Display
Thickness: As Request
Warranty: 1 Year
Packing: Carton Box
High Light:

LCD Truck Axle Scale

,

50T Truck Axle Scale

,

50T Vehicle Axle Weighing Scales

Basic Infomation
Place of Origin: China
Brand Name: Winlit
Certification: CE
Model Number: CH-A
Payment & Shipping Terms
Packaging Details: carton box and plastic box
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per week
Product Description

700*430*30mm 50t Electronic Portable Weight Scale For Truck, Mobile Weighbridge, Moveable Axle Weigher



Characteristics:

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Antirust,insterting-in and pulling-out seamless connection,waterproof.
4. Automatically distinguish vehicle axle model,check whether the vehicle is overloaded or not automatically.
5. Humanized software and hardware design.
6. With high grade aluminum suitcase,metallic painted,portable.



Features:

1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.



Specifications:



Model

PAW-A

Max Capacity (Single Axle)

5t

10t

15t

20t

30t

Pad dimension

700*430*30 (mm); 800*430*30 (mm)

Ramp dimension

700*350 (mm); 800*350 (mm)

Precision

Static ± 0.05%, Dynastic ± 2%

Load Cell structure

Pad is load cell, strain gauge inside

Cable Length

One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.

Division

0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg

Inspecting Speed

≤10km/h on average

Work Temperature

-45℃~+70℃



LCD Electronic Truck Axle Scale , 50T Vehicle Axle Weighing Scales

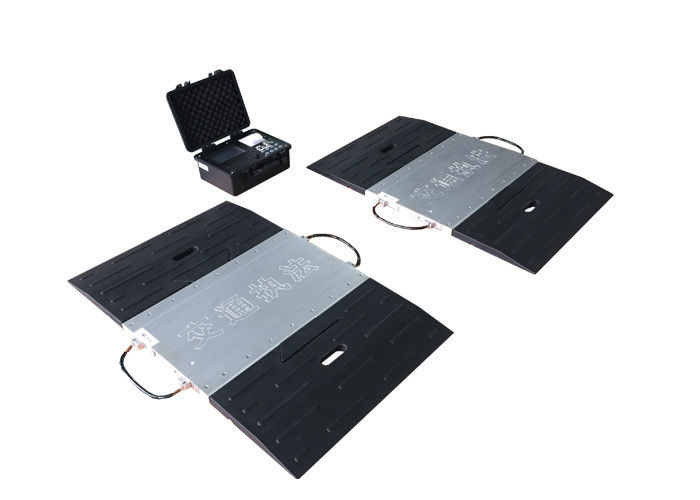

Weigh pads

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Anti-rust, insterting-in and pulling-out seamless connection, waterproof.



LCD Electronic Truck Axle Scale , 50T Vehicle Axle Weighing Scales

Box indicator

1. Support USB, SD card,
2. Support dynamic and static,
3. Support alarm output,
4. Can be applied to unattended weighing



Application:

LCD Electronic Truck Axle Scale , 50T Vehicle Axle Weighing Scales

FAQ:

1. who are we?
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(65.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Mid East(1.00%),Oceania(1.00%),Africa(1.00%),North America(1.00%). There are total about 11-50 people in our office.



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3. what can you buy from us?
Truck Scale,Pallet Scale,Platform Floor Scale,Bench Scale,Crane Scale



4. why should you buy from us not from other suppliers?
As one of the leading manufacturers in Weighing Equipment field in China. Hener has the big Weighing Equipment products line, including electronic crane scales, truck scale, rail scale, bench scale, floor scale, weighing indicators, portable axle scale



5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
