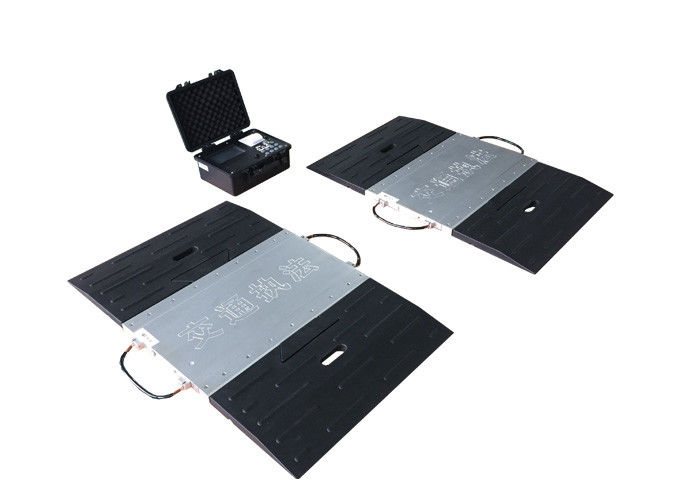

700*430 Portable Truck Axle Scale , 30T Portable Vehicle Scales

Category:
Electronic Weight Scales
Price:
Price negotiable
Payment Method:
L/C, T/T, Western Union, MoneyGram
Specifications
Product Name:
Weight Scale
Capacity:
50 Ton
Function:
Weight Function
Material:
ABS + Stainless Steel
Display:
LCD(LED )Display
Color:
Silver/orange
Plate:
Strength
Width:
Can OEM
High Light:

700*430 Truck Axle Scale

,

30T Truck Axle Scale

,

30T portable vehicle scales

Introduction

700*430*30mm 30 Ton Alloy Steel Portable Truck Axle Scales Water Resistant Portable Axle Weighbridge Each Pad Dimension



Axle scales have revolutionalized the way we measure heavy vehicles and loads by making it easier and more efficient to weigh different loads. Some axle scales can even measure up to 8 wheels of a truck at a time, saving you time and money.
If you’re in the market for an axle scale or wondering how they can work for your business, reach out to our experts for more information today.



Features:



1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.



Specifications:



Model

PAW-A

Max Capacity (Single Axle)

5t

10t

15t

20t

30t

Pad dimension

700*430*30 (mm); 800*430*30 (mm)

Ramp dimension

700*350 (mm); 800*350 (mm)

Precision

Static ± 0.05%, Dynastic ± 2%

Load Cell structure

Pad is load cell, strain gauge inside

Cable Length

One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.

Division

0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg

Inspecting Speed

≤10km/h on average

Work Temperature

-45℃~+70℃



700*430 Portable Truck Axle Scale , 30T Portable Vehicle Scales

Weigh pads

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Anti-rust, insterting-in and pulling-out seamless connection, waterproof.



700*430 Portable Truck Axle Scale , 30T Portable Vehicle Scales

Box indicator

1. Support USB, SD card,
2. Support dynamic and static,
3. Support alarm output,
4. Can be applied to unattended weighing



Application:

700*430 Portable Truck Axle Scale , 30T Portable Vehicle Scales



FAQ:

1. who are we?
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(65.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Mid East(1.00%),Oceania(1.00%),Africa(1.00%),North America(1.00%). There are total about 11-50 people in our office.



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3.what can you buy from us?
Truck Scale,Pallet Scale,Platform Floor Scale,Bench Scale,Crane Scale



4. why should you buy from us not from other suppliers?
As one of the leading manufacturers in Weighing Equipment field in China. Hener has the big Weighing Equipment products line, including electronic crane scales, truck scale, rail scale, bench scale, floor scale, weighing indicators, portable axle scale



5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Send RFQ
Stock:
MOQ:
1 set (=2 pieces)
