Movable Single Axle Weighbridge

Place of Origin China
Brand Name Hener
Certification CE
Model Number CH-A
Minimum Order Quantity 1 set (=2 pieces)
Price Price negotiable
Packaging Details carton box and plastic box
Delivery Time 7-12 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50 sets per week
Product Details
Product Name Weight Scale Item 1 Set
Material ABS + Stainless Steel Display LCD(LED )Display
Color Silver/orange Service Installation Help
Warranty 1 Year Packing Carton Box
High Light

Movable Single Axle Weighbridge

,

portable Single Axle Weighbridge

,

Movable portable axle scales

Leave a Message
Product Description

700*430*30mm 30 ton Alloy steel Trucks / Cars Portable Weighbridge Pads Pass Scale Speed ≤5km/h Integrated



Functional:
Axle scales are remarkably accurate and all have fairly high capacities so they are suitable for a wide variety of industries.

Cost-Effective:
Compared to other scales, axle scales are considered to be cost-effective because they don’t need to be given a constant power supply. Once it’s charged, it can operate for a good length of time.



Features:



1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.



Specifications:



Model

PAW-A

Max Capacity (Single Axle)

5t

10t

15t

20t

30t

Pad dimension

700*430*30 (mm); 800*430*30 (mm)

Ramp dimension

700*350 (mm); 800*350 (mm)

Precision

Static ± 0.05%, Dynastic ± 2%

Load Cell structure

Pad is load cell, strain gauge inside

Cable Length

One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.

Division

0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg

Inspecting Speed

≤10km/h on average

Work Temperature

-45℃~+70℃



Movable Single Axle Weighbridge 0

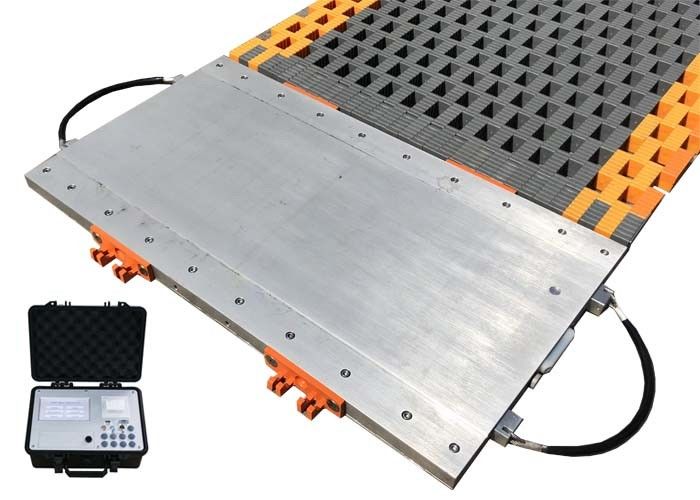

Weigh pads

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Anti-rust, insterting-in and pulling-out seamless connection, waterproof.



Movable Single Axle Weighbridge 1

Box indicator

1. Support USB, SD card,
2. Support dynamic and static,
3. Support alarm output,
4. Can be applied to unattended weighing
