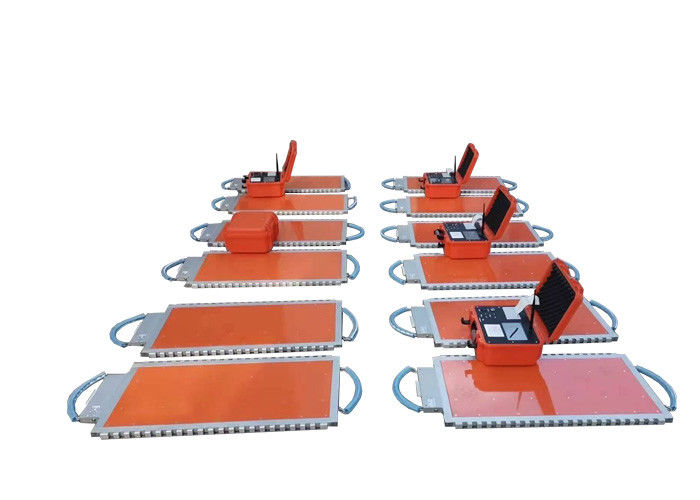

20T Truck Axle Scale

Place of Origin China
Brand Name Hener
Certification CE
Model Number CH-A
Minimum Order Quantity 1 set (=2 pieces)
Price Price negotiable
Packaging Details carton box and plastic box
Delivery Time 7-12 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50 sets per week
Product Details
Product Name Weight Scale Capacity 50 Ton
Function Weight Function Material ABS + Stainless Steel
Display LCD(LED )Display Sensor Depended
Weight Depended Warranty 1 Year
High Light

20V Truck Axle Scale

,

20V DC Truck Axle Scale

,

20T portable axle weighing scales

Leave a Message
Product Description

700*430*30mm 30 ton Alloy steel Accuracy ±0.07% Portable Axle Weighbridge 20V DC Power Supply Easy Operation



With all of the different types of truck weigh scales available, you might wonder why some companies choose to use an axle scale over other types. They Can Be Dynamic, because axle scales can measure while the vehicle is still in motion, it is easy to quickly check whether the load is overweight or not. Stable or Dynamic? The Choice is Yours. Axle scales come in either dynamic or stable models so depending on your industry you can choose what suits your business best.



Features:



1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.



Specifications:



Model

PAW-A

Max Capacity (Single Axle)

5t

10t

15t

20t

30t

Pad dimension

700*430*30 (mm); 800*430*30 (mm)

Ramp dimension

700*350 (mm); 800*350 (mm)

Precision

Static ± 0.05%, Dynastic ± 2%

Load Cell structure

Pad is load cell, strain gauge inside

Cable Length

One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.

Division

0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg

Inspecting Speed

≤10km/h on average

Work Temperature

-45℃~+70℃



20T Truck Axle Scale 0

Weigh pads

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Anti-rust, insterting-in and pulling-out seamless connection, waterproof.



20T Truck Axle Scale 1

Box indicator

1. Support USB, SD card,
2. Support dynamic and static,
3. Support alarm output,
4. Can be applied to unattended weighing



Application:

20T Truck Axle Scale 2

Exhibition:



20T Truck Axle Scale 3



Company Picture:

20T Truck Axle Scale 4



Certification:

20T Truck Axle Scale 5



FAQ:

1. who are we?
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(65.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Mid East(1.00%),Oceania(1.00%),Africa(1.00%),North America(1.00%). There are total about 11-50 people in our office.



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3. what can you buy from us?
Truck Scale,Pallet Scale,Platform Floor Scale,Bench Scale,Crane Scale



4. why should you buy from us not from other suppliers?
As one of the leading manufacturers in Weighing Equipment field in China. Hener has the big Weighing Equipment products line, including electronic crane scales, truck scale, rail scale, bench scale, floor scale, weighing indicators, portable axle scale



5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
