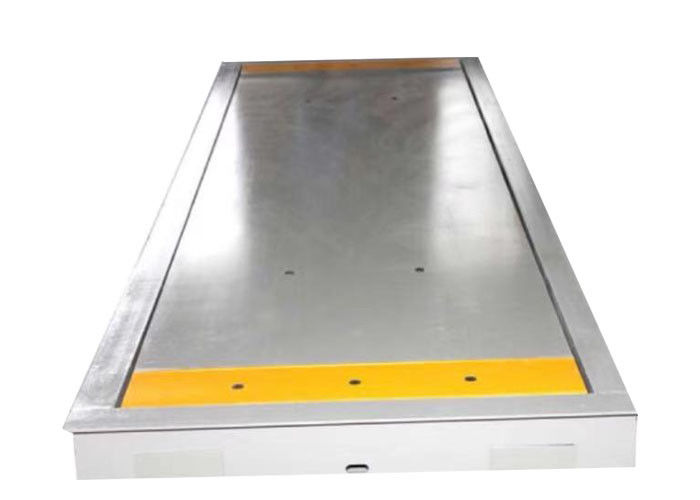

Grey Fixed 3.2m 40T Truck Axle Scale For Transportaion

Place of Origin China
Brand Name HENER
Certification CE
Model Number HR-TS
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details nude and wooden case
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 50sets per month
Product Details
Material Carbon Steel Warranty 12 Months
Display LCD/LED Load Cell Keli/zemic
Function Weigh Function Division 10kg
Product Name Axle Load Cell Cable 30 M
High Light

40T Truck Axle Scale


3.2m Truck Axle Scale


40T portable axle weigh pads

Leave a Message
Product Description

Factory Customized Grey Color Fixed Axle Scale 50Ton Weighbridge For Transportaion


Portable axle scales are designed and constructed to be the industry's most dependable, most accurate, and longest lasting heavy-duty axle scale system on the market today. Our portable axle scales will outperform and outlast most any other axle scale on the market. Our scales are built to work in your tough environments and we offer a wide range of configurations to accommodate your specific implementation needs. We offer a range of different weight capacities, power options, display and print options, pad configurations, optional removable ramps, USB interface options, terminals, transport options, and of course a range of prices to fit your budget.



1. platform size:3/3.2/3.5/4m etc × 0.9/2.0/2.2/2.5/3.0m

2. weighing load cell :equipped with 4 column load cells

3. specified range:20,30,40,50,60,80,100t

4. static accuracy:OIML 3,d=10,20,50kg

5. dynamic accuracy:axle weight F class

6. weighing forms:gross weight be equal with

7. accumulation data of fore-and-aft wheel,the

8. whole truck'weight can reach 30~150t

9. power:220v/50Hz(equipped with rechargeable batteries when electricity cut off)

10. print out weighing result by computer.

11. need puting in the foundation,fixed weighing




Capacity  20t 30t 50t 80t 100t
plate  dimension 3.2*0.8m  3.2*2.2m
Precision OIML 3,d=10,20,50kg
Load Cell structure 4 pcs of column load cells
Cable Length 20m, 30m, but longer cable is optional.
Division  10 kg, 20 kg, 50 kg
Inspecting Speed ≤10km/h on average
Work Temperature -45℃~+70℃
Indicator YaoHua-DM1   YaoHua-DM1P

The axle laod scale also can connect the big screen ,computer and external printer .



It contributes huge work in transportation

Grey Fixed 3.2m 40T Truck Axle Scale For Transportaion 0


Company Profile:

Grey Fixed 3.2m 40T Truck Axle Scale For Transportaion 1
Grey Fixed 3.2m 40T Truck Axle Scale For Transportaion 2

Our factory is located in Changzhou,Jiangsu Province,which is one of the most developed areas in China.
As one of the leading manufacturers in weighing equipment field in China.Hener has the big weighing equipment line,including
electronic truck scale ,portable axle scale ,floor scale ,pallet scale ,etc.
Hener is explaining the "Professional Design, Advanced Technology, Reliable Quality "by the perfect products,applications and services .




Grey Fixed 3.2m 40T Truck Axle Scale For Transportaion 3




Grey Fixed 3.2m 40T Truck Axle Scale For Transportaion 4
