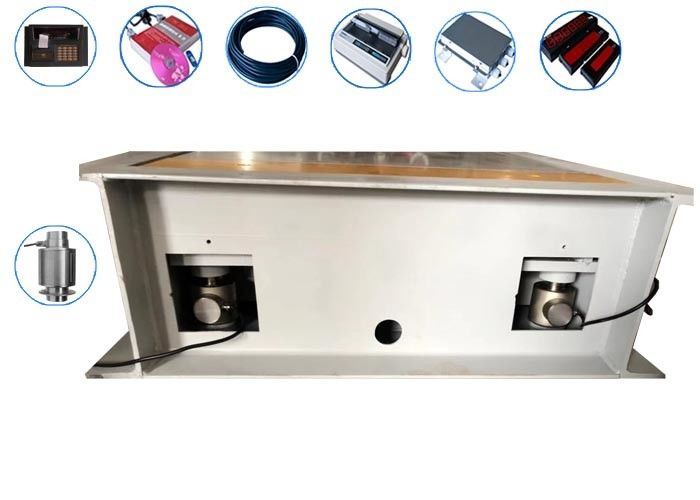

2.2M Fixed 20T Axle Scales For Trucks Load Protection

Place of Origin China
Brand Name HENER
Certification CE
Model Number HR-TS
Minimum Order Quantity 1
Price Negotiable
Packaging Details nude and wooden case
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 50sets per month
Product Details
Material Carbon Steel Warranty 1 Year
Load Cell Keli/zemic Display LCD/LED
Cable 30 M Package LCL
Function Weigh Function Voltage AC 110-220V
High Light

20T Axle Scales For Trucks


2.2M Axle Scales For Trucks


20T portable wheel load scales

Leave a Message
Product Description

3.2*2.2M Fixed Axle Scale 20Ton High Quality Weighbridge Vehicle Truck Scale


With 120% overload and side load protection, these scales offer vehicle operators complete peace of mind when it comes to the damage caused by overloaded vehicles. Available in a range of lengths, widths and capacities, these axle scales are ideal for use where space is at a premium. Can provide fast and accurate axle and gross weight information for all vehicle types from light vans to multi-axle trucks.



1. platform size:3/3.2/3.5/4m etc × 0.9/2.0/2.2/2.5/3.0m

2. weighing load cell :equipped with 4 column load cells

3. specified range:20,30,40,50,60,80,100t

4. static accuracy:OIML 3,d=10,20,50kg

5. dynamic accuracy:axle weight F class

6. weighing forms:gross weight be equal with

7. accumulation data of fore-and-aft wheel,the

8. whole truck'weight can reach 30~150t

9. power:220v/50Hz(equipped with rechargeable batteries when electricity cut off)

10. print out weighing result by computer.

11. need puting in the foundation,fixed weighing




Capacity  20t 30t 50t 80t 100t
plate  dimension 3.2*0.8m  3.2*2.2m
Precision OIML 3,d=10,20,50kg
Load Cell structure 4 pcs of column load cells
Cable Length 20m, 30m, but longer cable is optional.
Division  10 kg, 20 kg, 50 kg
Inspecting Speed ≤10km/h on average
Work Temperature -45℃~+70℃
Indicator YaoHua-DM1   YaoHua-DM1P

The axle laod scale also can connect the big screen ,computer and external printer .



It contributes huge work in transportation
