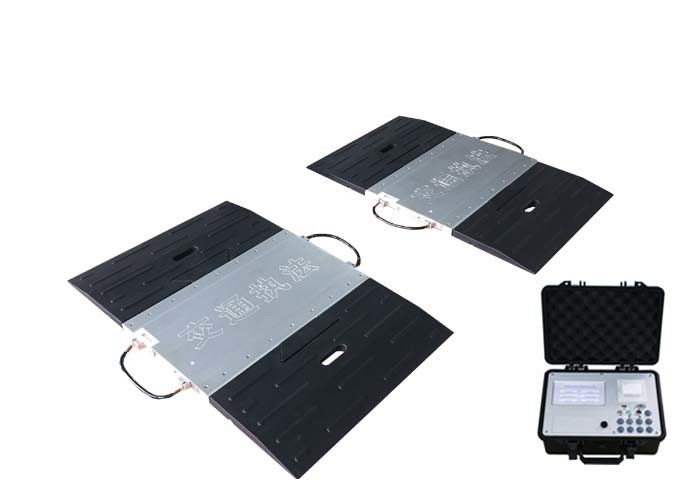

20T 50HZ Portable Truck Axle Scales RS232 4 Sensors

Place of Origin China
Brand Name Hener
Certification CE
Model Number CH-A
Minimum Order Quantity 1 set (=2 pieces)
Price Price negotiable
Packaging Details carton box and plastic box
Delivery Time 7-12 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50 sets per week
Product Details
Product Name Weight Scale Keyword Axle Load Scale
Function Weight Function Material ABS + Stainless Steel
Display LCD(LED )Display Interface RS232
Certificate CE ISO9001 Warranty 1 Year
High Light

50Hz Portable Truck Axle Scales

,

20T Portable Truck Axle Scales

,

50HZ portable weight scale for trucks

Leave a Message
Product Description

700*430*30mm 30 ton Alloy steel 4 Sensors Portable Weighbridge Scales To Weigh Trucks , Axle Weighing System 220V / 50Hz



Application:

1. weighing and load control of loading truck in road transportation, construction, agriculture, forestry, and dustbin disposal.
2. weighing of loading truck by executive enforcement units.
3. test weight and center of gravity of aero-plane.
4. weighing automobile wheel and axle load distribution in automobile production line.
5. stability test of special automobile, such as fork-lift truck, crane.



Features:

1. Multi language supported.
2. Dynamic accuracy:1%,static accuracy: 5‰.
3. Ultra-slim structure, easy for move, with light weight less than 25 kg.
4. With special protection treatment, suitable for harsh environment.
5. Weighing range up to 20 ton per pad.



Specifications:



Model

PAW-A

Max Capacity (Single Axle)

5t

10t

15t

20t

30t

Pad dimension

700*430*30 (mm); 800*430*30 (mm)

Ramp dimension

700*350 (mm); 800*350 (mm)

Precision

Static ± 0.05%, Dynastic ± 2%

Load Cell structure

Pad is load cell, strain gauge inside

Cable Length

One set include 2 weighing pads, Cable length is 10 m and 8 m, but longer cable is optional.

Division

0.5 kg, 1 kg, 2 kg, 5 kg, 10 kg, 20 kg, 50 kg

Inspecting Speed

≤10km/h on average

Work Temperature

-45℃~+70℃



Weigh pads

1. Ultra-low,hard aluminum alloy pad,integrated design.
2. High strength,good repeatability.
3. Anti-rust, insterting-in and pulling-out seamless connection, waterproof.



Box indicator

1. Support USB, SD card,
2. Support dynamic and static,
3. Support alarm output,
4. Can be applied to unattended weighing

20T 50HZ Portable Truck Axle Scales RS232 4 Sensors 0
